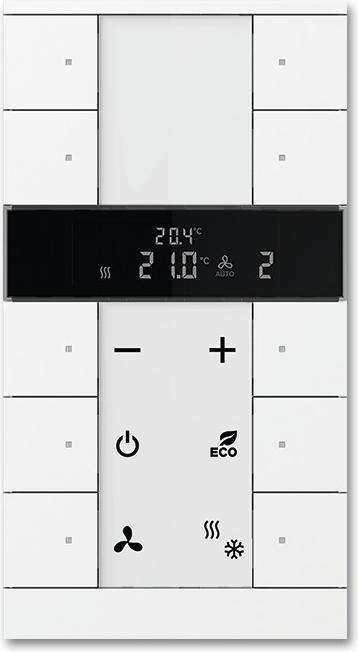

Busch-Jaeger Room Temperature Controller SBR/U10.0.11-84

Manufacturer: Busch-Jaeger
Designation: Room Temperature Controller 10-fold with Operating Function
Type: SBR/U10.0.11-84
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Composition: Control Element
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With LED Display: yes
With Screen: yes
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: glossy
Color: studio white
RAL Number (similar): 9016
External Sensor: no
Manual Setpoint Adjustment: yes
Presence Button: yes
Parallel Operation Possible: yes
Protection Class (IP): IP20
With Bus Coupling: no
Temperature Controller Class: I
Minimum Depth of Device Box: 33 mm

The Busch-Jaeger Room Temperature Controller SBR/U10.0.11-84 is a freely configurable multifunction control element with an integrated KNX bus coupler and labeling field. It supports KNX functions through an innovative color concept (yellow=lighting, blue=blinds, orange=RTR, magenta=scenes, and white=neutral/no function assignment) or standard red/green lighting.

Button Function: Switching, Dimming, Blinds, Sending Values, Light Scenes, among others Master/Slave operation. With basic load operation. The controller is a continuous room temperature controller for fan convectors (Fan Coil) in 2-pipe and 4-pipe systems as well as conventional heating or cooling systems. The fan speed can be switched manually or set to automatic operation.

Temperature Controller Class: 1
Contribution to Room Heating Energy Efficiency: 1.0%.
Number of Bus Participants: 1.
