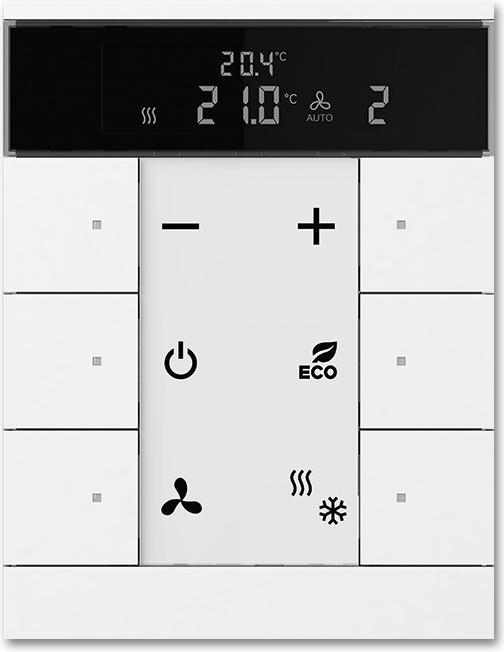

Busch-Jaeger Room Temperature Controller SBS/U6.0.11-84

Manufacturer: Busch-Jaeger
Designation: Room Temperature Controller 6-fold studio white
Type: SBS/U6.0.11-84
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Composition: Control Element
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With LED Display: yes
With Display: yes
Material: Plastic
Material Quality: Thermoplastic
Surface Protection: untreated
Surface Finish: glossy
Color: studio white
RAL Number (similar): 9016
External Sensor: no
Manual Setpoint Adjustment: yes
Presence Button: yes
Parallel Operation Possible: yes
Protection Class (IP): IP20
With Bus Coupling: no
Temperature Controller Class: I
Minimum Depth of Device Box: 30.7 mm

The Busch-Jaeger Room Temperature Controller SBS/U6.0.11-84 is a freely configurable multifunction control element. It is a room temperature control element/regulator with a maximum of 6 control elements and a labeling field. A transparent labeling sheet with standard symbols is included in the delivery.

Support for KNX functions is provided through an innovative color concept (yellow=lighting, blue=shutter, orange=RTR, magenta=scenes, and white=neutral/no function assignment) or standard red/green lighting. The button function includes switching, dimming, shutter control, value sending, light scenes, and ventilation function.

The controller features an integrated temperature sensor as well as temperature displays for actual and set values. The bus connection is made via the included bus terminal, and there is an integrated KNX bus coupler. The number of bus participants is 1. Commissioning is done via the native ETS application.
