Eltako Temperature Controller PL-SAMTEMP

Manufacturer: Eltako
Designation: Temperature controller for heating and cooling
Type: PL-SAMTEMP
KNX bus system: no
KNX radio bus system: no
Radio bus system: no
LON bus system: no
Powernet bus system: yes
Other bus systems: none
Bidirectional radio: no
Composition: other
Mounting type: flush-mounted
With local operation: yes
With theft/dismantling protection: no
With LED display: no
With display: yes
Material: plastic
Material quality: thermoplastic
Surface finish: glossy
Color: white
Transparent: no
External sensor: no
Manual setpoint adjustment: yes
With bus coupling: no
Power consumption in standby mode: 0.4 W
Minimum depth of device box: 33 mm

Eltako Temperature Controller PL-SAMTEMP: additional details

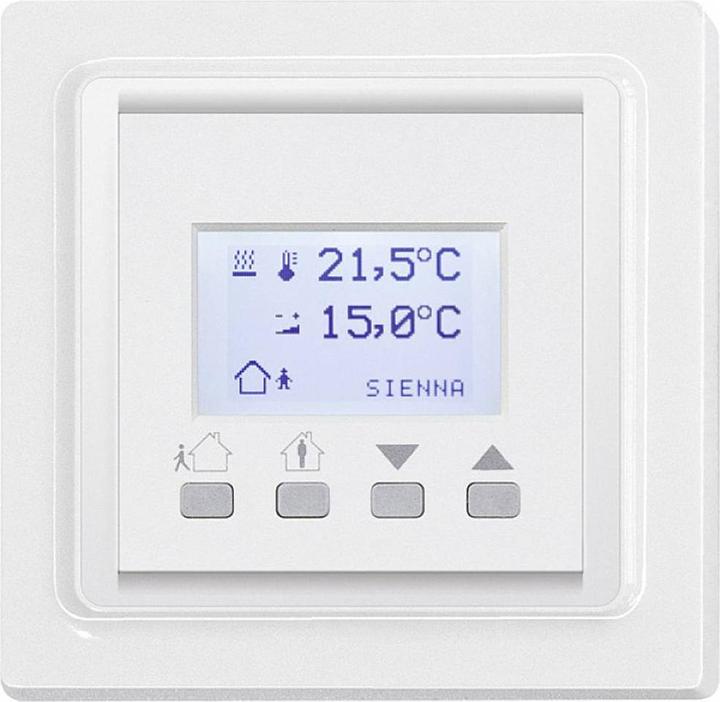

Powerline temperature controller with display, white, 55x55 mm, for installation in switch systems. Additionally, there is a potential-free control contact 3A/250V AC for direct connection of heating and cooling. Display is illuminated. Standby loss is only 0.4 watts. Included in the delivery are a frame R1E and an intermediate frame ZR65/55 for the E-design, the temperature controller upper part, and a lower part for mounting in 55 mm flush-mounted boxes. The complete display can be pulled out of the frame for screw mounting. In normal operation, the current room temperature is displayed, along with symbols for present or absent, as well as for heating active or cooling active. The corresponding setpoint is activated using the absent and present buttons. In setting mode according to the operating instructions, the set and actual temperatures are displayed with the up and down arrow buttons, and the setpoints can be changed. Control of heating or cooling with Powerline actuators SAM1L, SAM2L, or thermostat outputs. In addition to heating/cooling, a PWM mode for underfloor heating can be set. All settings can also be made via SIENNA-Professional.
EAN: 4010312316733.
