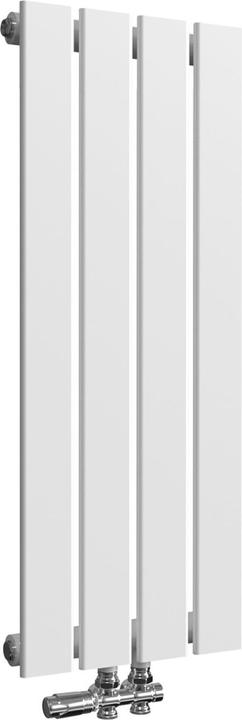

EMKE Flat Radiator Small Design Panel Radiator, Vertical, Central Connection, Anthracite/White/Black

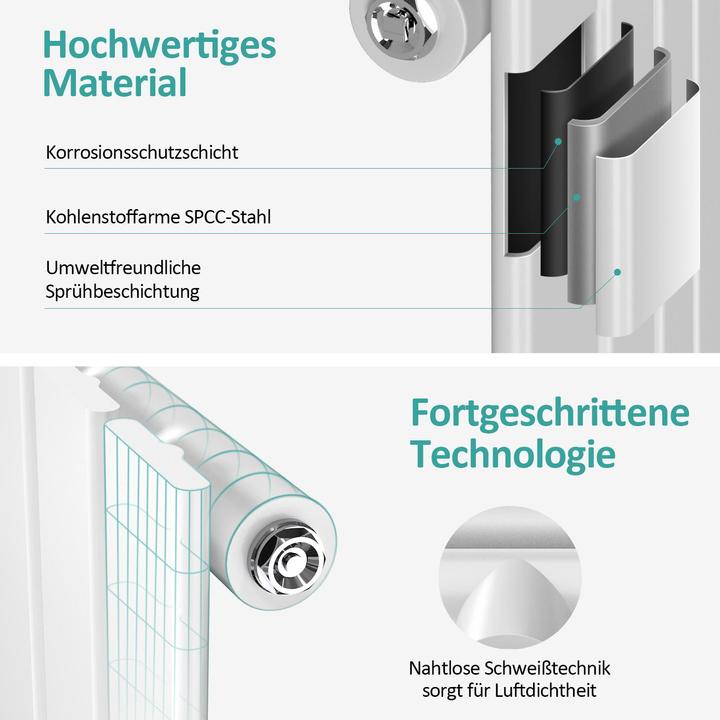

• High-Quality Materials: We use low-carbon steel from SPCC, a cold-rolled steel, to ensure durability as well as resistance to rust and corrosion. The surface features an eco-friendly coating that is simple yet beautiful.

• Advanced Welding Technology: Thanks to the advanced integrated welding, the weld seam is extremely small and aesthetically pleasing. Overlapping welding ensures higher strength and a lower leakage rate.

• High Thermal Conductivity: The radiator is heated by flowing hot water, and the high-quality stainless steel material ensures good thermal conductivity. The large volume is suitable for spacious rooms.

• Design Radiator: The straight-line design impresses with contemporary clarity. The flat channel design allows for close placement of the radiator to the wall, reducing space requirements.

Specifications:

• Material: High-quality SPCC steel
• Color: Anthracite (RAL 7016) / White (RAL 9016)
• Installation Direction: Vertical
• Shape: Flat

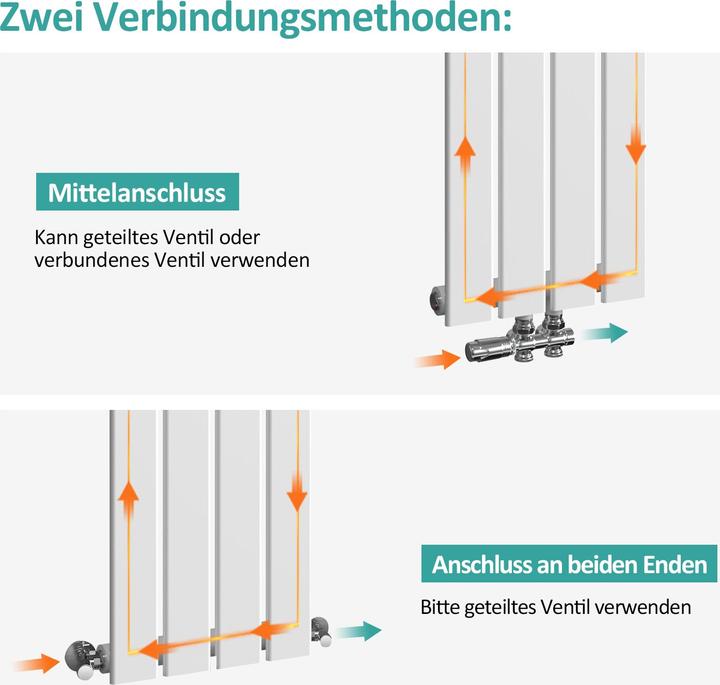

• Connection: Central connection
• Maximum Operating Pressure: 4 bar
• Test Pressure: 6 bar

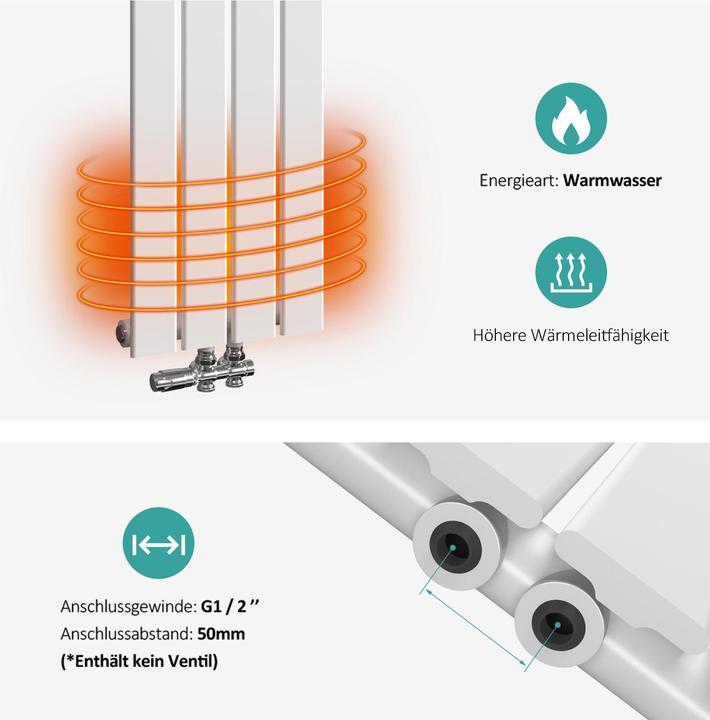

• Connection Thread: G1/2"
• Connection Dimension: 50 mm
• Wall Distance (Wall to Outer Edge of Radiator): 85 mm

Size and Performance:

• Single Layer, 900x300x49 mm, 403 W, Room Area: 5.4 sqm
• Double Layer, 900x300x63 mm, 446 W, Room Area: 5.9 sqm

Delivery Includes:

• Radiator (Note: without multi-block)
• Mounting set (including wall bracket) + installation instructions.
