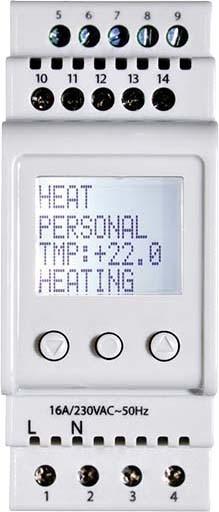

Etherma Universal Thermostat ITR-80

Manufacturer: Etherma
Designation: Digital Universal Thermostat
Type: ITR-80
Execution: Digital
Sensor Type: Remote Sensor
Rated Voltage: 230 V
Rated Frequency: 50 Hz
Number of Channels: 1
Text Display: Yes
24-Hour Program: Yes
Weekly Program: Yes
Shortest Temperature Phase: 30 min
Number of Memory Slots: 4
Number of Factory Default Programs: 3
Holiday Program: No
Input for Time Program: Yes
Comfort Setting Range: -15 to 75 °C
Reduction Setting Range: 5 °C
Frost Protection Setting Range: 5 °C
Reserve Time: 50 h
Automatic Summer/Winter Time Changeover: No
Operating Mode Switch: Yes
Switching Preselection: No
Contact Type: Normally Open
Switching Rated Current at 250 V, potential-free: 16 A
Switching Rated Current at 230 V, not potential-free: 16 A
Protection Class (IP): IP20
Width in Division Units: 2
Installation Depth: 70 mm
Class of Temperature Controller: II
Power Consumption in Standby Mode: 3 W

The ITR-80 thermostat is designed for mounting on a DIN rail, allowing for easy installation in the control cabinet. Four different modes can be programmed: Heating, Cooling, Industrial, or MAX/MIN mode. The device is universally designed for heating and cooling applications. Various control properties can be influenced through parameterization. The desired value and all parameters of the controller are set using three control buttons. The LED indicates the status of the control output. The thermostat is powered by a voltage of 230 V. Includes daily/weekly program, temperature range: -15 to 75 °C, temperature sensor: NTC, sensor cable length: 3 m (extendable on-site up to max. 50 m), space requirement: 2 TE, switching current: 16 A, 1 relay contact, mounting: on standard mounting rail, digital switch input, CE compliant.
