Panel radiators

The modern and timeless panel radiator is the ideal solution for bedrooms, kitchens, bathrooms and living rooms. It is ideal for various living areas thanks to its stylish design and efficient heat output.

The flat design of the radiator is particularly space-saving, making it possible to optimise the use of space without having to sacrifice powerful heating functions. This makes it particularly suitable for rooms where space is at a premium.

With the enclosed installation instructions, wall mounting this elegant panelled radiator is quick and easy. This way, you can easily connect it to your heating system and start using it straight away.

For professional installation, we recommend consulting a specialist if you are unsure. This will ensure that the radiator is not only optimally connected, but also operated efficiently to provide you with a reliable source of heat in the long term.

Product highlights:

• Modern and timeless design for various living areas
• Space-saving design optimises the use of space
• Quick and easy wall mounting with enclosed instructions
• Easy connection to the heating system

Technical data:

• Design: Two-layer
• Heat output: 812 W
• Number of fins: 4+4
• Max. Operating pressure: 10 bar
• Operating mode: Hot water
• Connection for flow and return: Centre connection (bottom)
• Connection thread: G1/2"

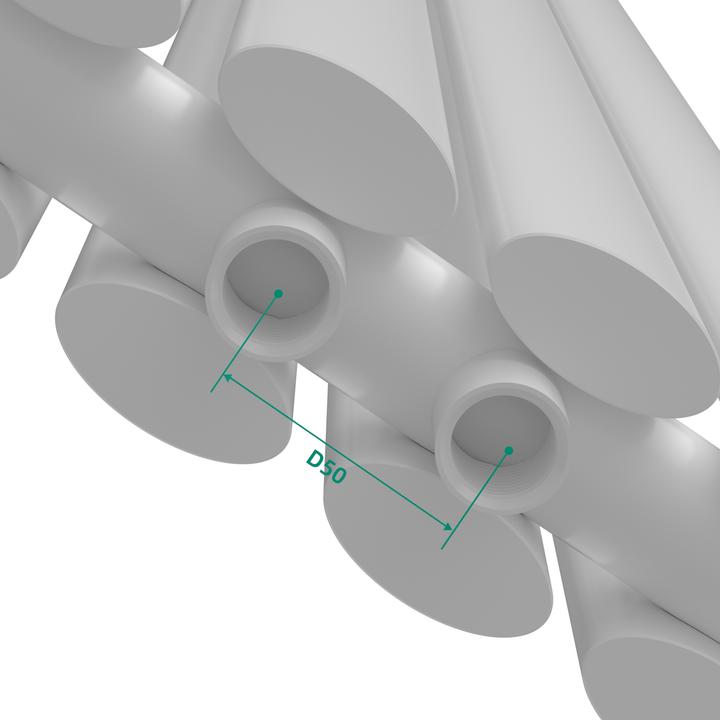

• Connection distance: 50 mm
• Certificate: EU standard DIN EN442 & TÜV certificate according to ISO 9001

Material:

Steel

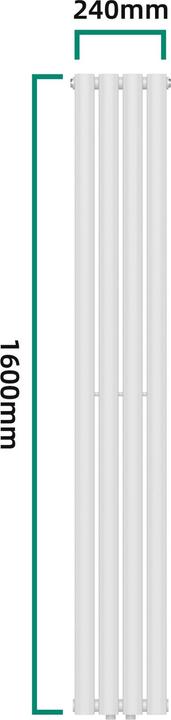

Dimensions (HxWxD):

160 x 24 x 7.8 cm

Colour:

White RAL9016

Scope of delivery:

• 1 x radiator
• 1 x mounting material

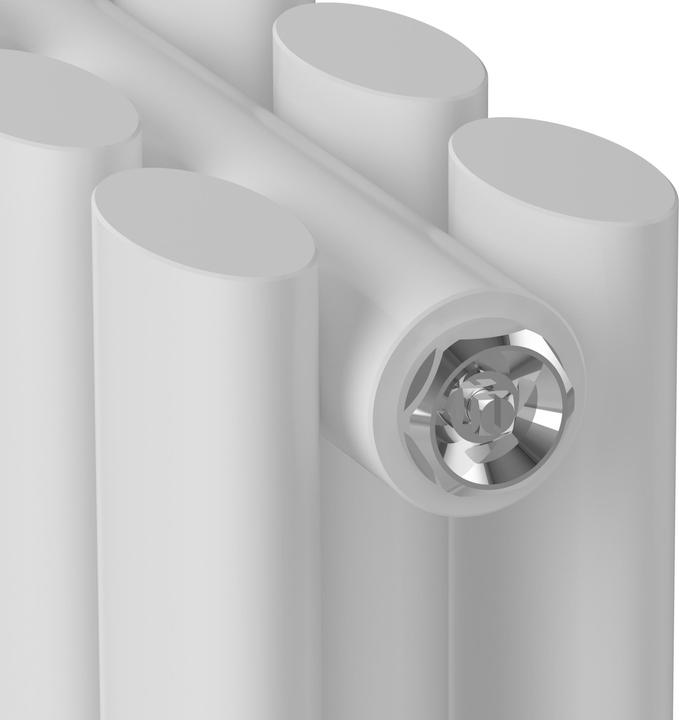

• 1 x bleed valve
• 3 x blanking plugs
• 1 x installation instructions

Note:

A matching valve fitting set for radiators incl. thermostatic head (multiblock) can be purchased separately from us.

Branded goods from the company:

[neu.haus].
