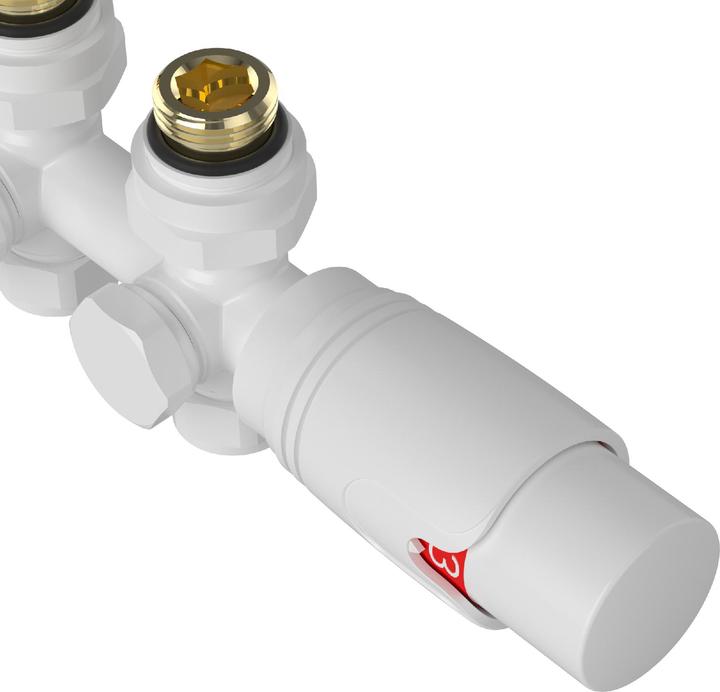

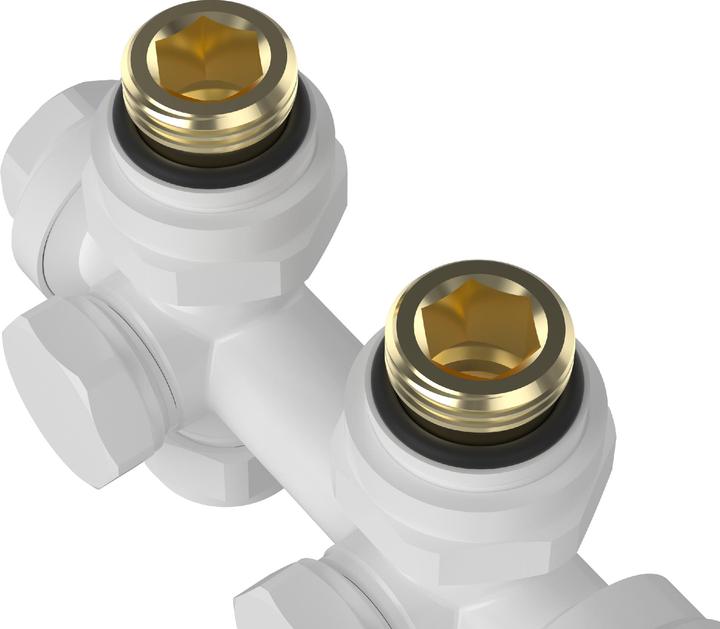

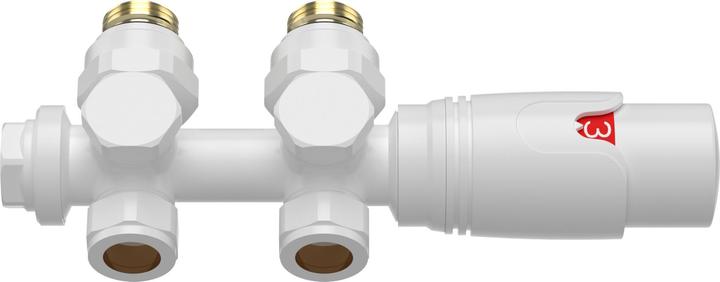

6-Way Multi-Block

The high-quality and stylish connection fitting for radiators offers flexible usage options and allows for the connection between the radiator and the heating system. It is perfect for wall or floor connections and can be used as a corner or straight valve.

Installation is easy and straightforward. The thermostat head included in the delivery can be positioned flexibly on either the left or right side.

The central connection has a pipe distance of 50 mm and is designed for a maximum operating pressure of 10 bar. The 1/2" connection thread for radiators comes with suitable adapters for 15 mm copper pipes and 16 mm plastic pipes.

Our thermostatic radiator valves meet the highest quality standards according to the EN 215 norm. Their efficient functionality not only stabilizes the room climate but also significantly contributes to the energy efficiency of your heating system.

Product Highlights:

• Multi-block connection fitting for two-pipe systems including thermostat and suitable adapters
• Usable for pipes from the wall or floor (corner and straight design)
• Thermostat valve with built-in liquid sensor (can be mounted either right or left)
• For use on radiators with supply and return connections
• Thermostat head with five adjustable heating levels

Technical Data:

• Connection thread for radiators: 2 x G1/2"
• Connection distance: 50 mm
• Operating mode: Hot water
• Operating pressure: max. 10 bar
• Max. differential pressure: 0.6 bar
• Operating temperature: max. 120°C
• Closing time: 20 minutes
• Thermostat scale: 0 - 5 (corresponds to a temperature range of 7°C - 28°C)
• Certificate: Quality standard according to EN 215 norm
• Pipe diameter: 15 mm, 16 mm

Material:

Brass

Color:

White RAL9016

Delivery includes:

1 x connection fitting including thermostat head

Brand product from:

neu.haus.
