Description

Exhaust control for monitoring fresh air supply when operating an exhaust device, e.g., a range hood, while simultaneously using an oil, wood, coal stove, or gas boiler. It only allows the exhaust device to be turned on when a window or door is open to prevent the backflow of dangerous gases from the heating appliance.

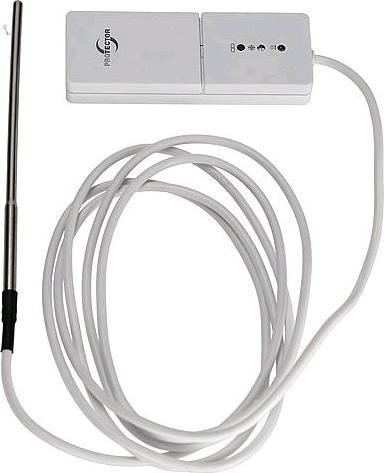

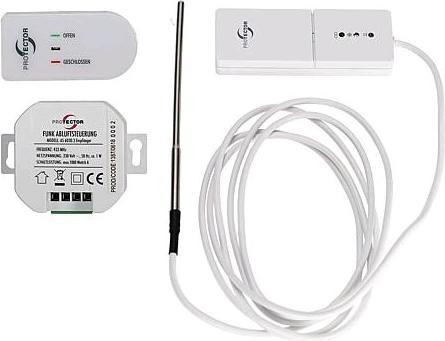

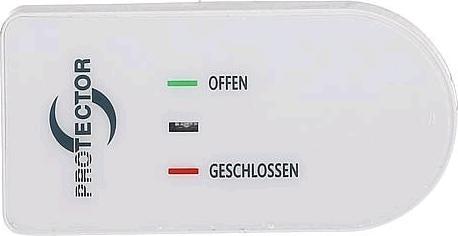

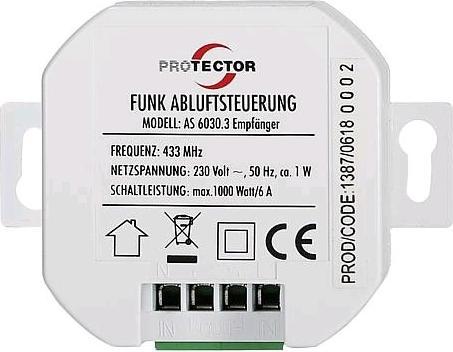

Includes an in-wall control receiver (52x52x32 mm) with status/operation LED, test switch function, and potential-free normally open contact. Wireless thermo-sensor with a connection cable (length 2 m) for the flue pipe, which monitors the exhaust temperature of the heating appliance. If the temperature exceeds 38 ºC, it turns off the exhaust device. The exhaust device can be activated by both the wireless window contact (when the window is opened) and the wireless thermo-sensor (when the heating appliance is not in operation). Wireless thermo-sensor (H97xB36xT14 mm, battery-operated 3x Micro), wireless window contact (H30xB60xT19 mm), including 1x CR2477 button cell and a brown interchangeable housing for the wireless window contact. Wireless frequency 434 MHz, maximum stove output 4.5 kW.

Technical Data

EAN: 4260070565120

Product Group: Fans and Accessories

Manufacturer: PROTECTOR

Supplier Article Number: AS 6030.3

Color: White

Type: Wireless

Contact: Thermal Contact

Switch Contact: Normally Open

Power: 230 V/1000 W

Frequency Range: 434 MHz.
