Heater accessories
−59%
only 1 piece on sale
EUR5,68 was EUR13,81
Oventrop OV Authority cap we f Uni LH LHC LHZ LA without blocking
Best Oventrop products in the Heater accessories category
On this page you'll find a ranking of the best Oventrop products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Oventrop OV Authority cap we f Uni LH LHC LHZ LA without blocking
The Oventrop authority cap is a radiator booster specifically designed for valve radiators. This cap provides an effective solution for enhancing heating performance and is equipped with vandalism protection to ensure durability and functionality. The cap comes in a simple white color, making it a discreet addition to various residential and work environments. It is sold as a single piece and is easy to install. The Oventrop authority cap is a practical choice for anyone seeking reliable and efficient heating control. It is designed to optimize temperature regulation while protecting access to the thermostat valves. This cap is an essential accessory for modern heating systems and contributes to improving the indoor climate.
2. Oventrop Adapter M30x1auf M30x1 5
For conversion of thermostatic valves with threaded connection - suitable for Oventrop valves up to 1998. Further technical features: radiator thermostat switch adapter.

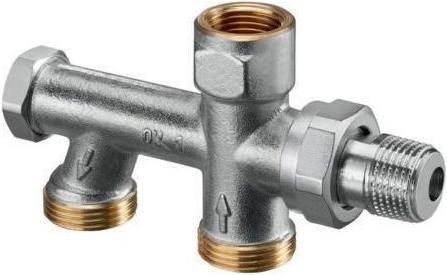

3. Oventrop OV Uno single-pipe connector G 3/4" male with HK insulating fitting
The Oventrop Uno G 3/4" AG one-pipe connection fitting is a high-quality radiator fitting specifically designed for one-pipe central heating systems with forced circulation. This product is suitable for use in heating systems with a maximum operating pressure of PN 10. It offers stepless adjustment of the bypass, allowing for precise control of the heating water flow. The integrated shut-off function provides additional flexibility during installation and maintenance. With a center distance of 50 mm between supply and return, this connection fitting is ideal for connecting valve radiators. The robust construction ensures a long service life and reliability in operation.
- Steplessly adjustable bypass for precise control
- Integrated shut-off function for flexible installation
- Suitable for valve radiators in one-pipe central heating systems.
Heater accessories
EUR63,52
Oventrop OV Uno single-pipe connector G 3/4" male with HK insulating fitting
4. Oventrop OV cutting ring fitting Ofix-Oil steel, galvanised R 3/8inchx10mm
The OV cutting ring fitting Ofix-Oil from Oventrop is a high-quality straight screw fitting specifically designed for use in heating devices. It is made of galvanized steel and provides a reliable connection for heat emitters and other heating equipment. With a threaded connection of 3/8 inch and a length of 0.04 mm, this fitting is ideal for applications requiring high pressure stability. The cutting ring fitting belongs to series L according to DIN 2353 and is designed for load class L (light). The galvanically and electrolytically galvanized surface protection ensures increased corrosion resistance and durability, making it an excellent choice for heating applications.
- Suitable for heat emitters and heating devices
- Load class L (light) according to DIN 2353
- Pressure rating PN 100 for high stability
- Galvanized for improved corrosion resistance.
Heater accessories
EUR9,31
Oventrop OV cutting ring fitting Ofix-Oil steel, galvanised R 3/8inchx10mm
5. Oventrop OV Combi 3 shut-off elbow fitting with union nut 3/4in ÜMx3/4in AG
Combi 3 fitting made of brass with a nickel-plated housing. It features a brass valve cone with an EPDM O-ring seal and a brass protective cap with an additional soft seal. The single fittings are designed for installation on radiators with two-pipe valve sets.
Further technical features include:
- With squeezing set: Yes
- Material of the body: Brass
- Right-angled design: Yes
- With drain valve: No
- Size of radiator connection: 3/4 inch (20)
- Flow direction opposite: No
- Adjustable: Yes
- Dimension pipe connection: 3/4 inch Euro cone
- Shortened overall length: No.
Heater accessories
EUR109,–
Oventrop OV Combi 3 shut-off elbow fitting with union nut 3/4in ÜMx3/4in AG

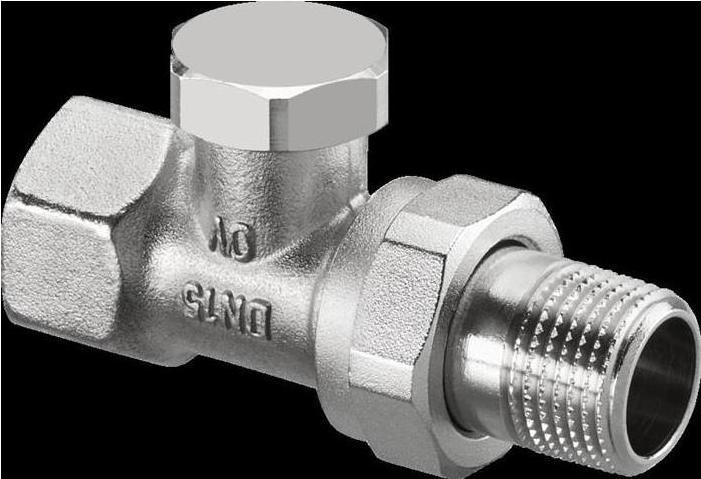

6. Oventrop OV HK-fitting Combi 2 PN 10 MS nickel-plated passage DN 10 3/8Z
Radiator fitting with proportional presetting for use in hot water central heating and cooling circuits. The fitting is made of brass with a nickel-plated housing. The valve cone is made of brass and features an EPDM O-ring seal. It includes a brass protective cap.
Further technical features:
- Dimension pipe connection: 1/2 inch
- Design: end piece/female thread
- Adjustable: Yes
- Size radiator connection: 1/2 inch (15)
- Height: 34mm
- Kvs value: 1.7
- KV-value: 0.06
- With drain valve: No
- With squeeze set: No
- Surface protection: nickel-plated
- Right-angled design: No
- Flow direction opposite: No
- Shortened overall length: No
- Material of housing: brass.

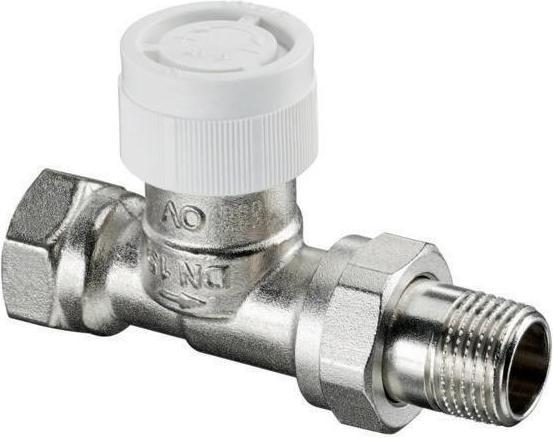

7. Oventrop OV thermostatic valve series AV 9 M 30x1.5, PN 10, passage DN 10
Stepless presetting - brass - nickel-plated - presetting is done by means of presetting key 1183962 or key SW 13 - for two-pipe central heating systems with forced circulation - not suitable for heating systems with steam - the valve inserts. Additional technical features: - Dimension thermostatic connection M30 x 1.5 - Design (1) end piece/female thread - Automatic flow control No - Operation thermostatic with knob - Size radiator connection 3/8 inch (10) - Height 31mm - Kvs-value 0.9 - Opposed flow direction No - Thermostatic preparation Yes - Shortened overall length No - Pre-adjustable Yes - Housing material Brass.
Heater accessories
EUR26,29
Oventrop OV thermostatic valve series AV 9 M 30x1.5, PN 10, passage DN 10

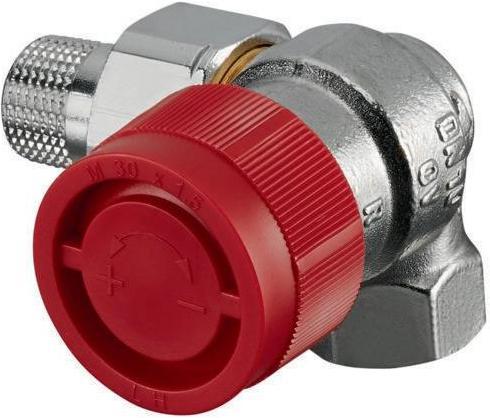

8. Oventrop OV thermostatic valve AF series M 30x1.5 PN 10 right hand DN 15 R 1/2Zo
With infinitely variable fine presetting, gunmetal/brass fitting, nickel-plated housing, and stainless steel spindle. It features a connection for threaded and clamped connections, with a thermostat threaded connection of M 30 x 1.5. The maximum operating temperature is 120 °C.
Further technical features include:
- Dimension thermostatic connection: M30 x 1.5
- Design: (1) end piece/female thread
- Automatic flow control: No
- Operation: thermostatic with knob
- Size heating co: Kvs-value 0.37
- Flow direction opposite: No
- Thermostatic preparation: Yes
- Shortened overall length: No
- Pre-adjustable: Yes
- Material of the body: Brass.
Heater accessories
EUR50,37
Oventrop OV thermostatic valve AF series M 30x1.5 PN 10 right hand DN 15 R 1/2Zo

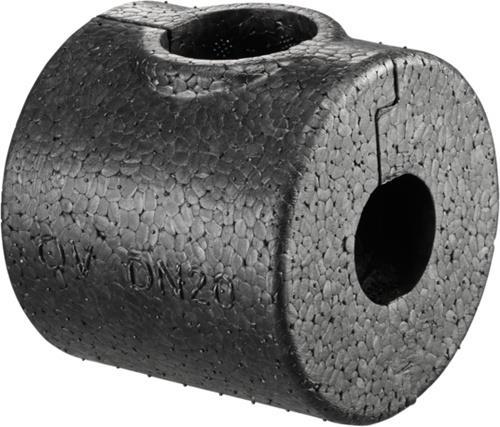

9. Oventrop GmbH & Co KG Insulation Optibal DN15, 1/2

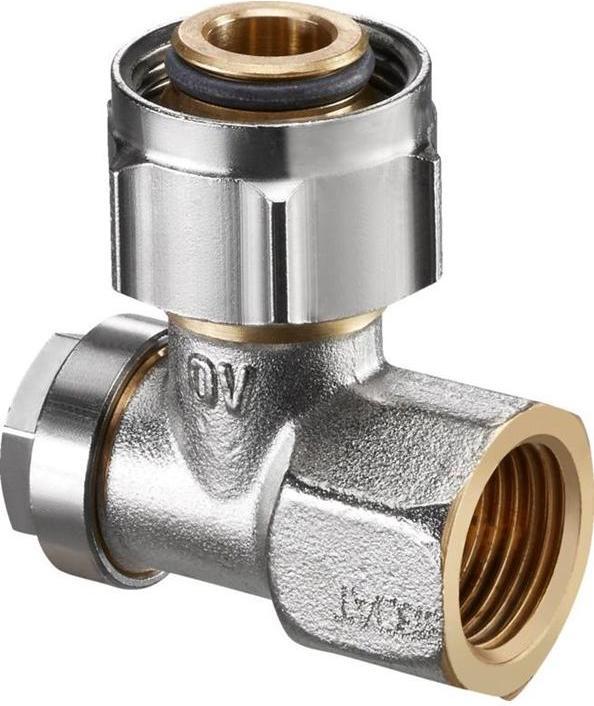

10. Oventrop OV shut-off fitting Combi 3 Multiflex 3/4inch ÜMx3/4inch AG
Combi 3 fitting made of brass - nickel-plated housing. Brass valve cone with EPDM O-ring seal. Brass protective cap with additional soft seal. The single fittings are installed on radiators with two-pipe valve sets. For pre-installation Further technical features: - With squeezing set: Yes - Material of housing: Brass - With drain valve: No - Right-angled design: No - Size of radiator connection: 3/4 inch (20) - Flow direction opposite: No - Adjustable: Yes - Dimension pipe connection: 3/4 inch Euro cone - Shortened overall length: No
