Best Merten products in the Thermostats category
On this page you'll find a ranking of the best Merten products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Merten MEG5779-0325
With this Schneider Electric Merten System M Wiser Module Thermostat, you can control the indoor temperature. This product is compatible with both inserts: a 16A relay for electric heating (floor heating, radiators, hydronic floor heating) and a 2A relay for hydronic systems (radiators, floor heating, circulation pumps, and motorized valves). The communication interface protocol of this device is Zigbee 3.0, integrated into the Wiser Home System. The power consumption in standby mode (no load switching) must be less than 0.5W. The dimensions are (H) 55mm x (W) 55mm x (D) 14mm. This product serves as a temperature controller for electric floor heating with a floor sensor (only in combination with the 16A relay insert). This device also functions as a room temperature controller for hydronic or electric applications. It can provide heating or cooling for hydronic floor systems (only in combination with a 2A relay). The smart thermostat connection or standalone operation with a capacitive touch display is easy to set up and integrates into the Merten System M design. Remote access and simple scheduling with the Wiser Home App are also possible. The product must be operated with an input power of 230VAC single-phase +/- 10% at 50-60Hz. The device can be installed in a CE60 wall box and achieves an IP30 protection rating. The transmission frequency is 2.4GHz, and the operating range is 30m in open space. This device complies with CE and CB certifications. It is a quick installation solution that does not require an internet connection. The color of the product is white with a glossy RAL 9010 finish. The universal input allows for energy savings in combination with a proximity sensor when no one is in the room. A solution for Merten customers who need connectivity and remote control as part of the Wiser Home System.
2. Merten KNX Multi-Touch Pro, System M MEG6215-0310
The KNX Multi-Touch Pro (MEG6215-0310) from Merten is an advanced room control device specifically designed for managing room functions in KNX systems. Featuring a user-friendly touchscreen display, this device allows for easy management of up to 32 different functions, including room temperature control. The intuitive user interface offers the option to choose from three different designs that can be individually assigned to room functions. The room temperature controller is suitable for both heating and cooling applications and can be operated with continuously adjustable KNX actuators. The device is designed for flush mounting, providing an appealing solution for modern smart home applications, even though it is not compatible with smart home systems. With an IP20 protection rating, it is suitable for use in dry indoor environments and offers reliable control of room climate and lighting functions.
- User-friendly touchscreen display for controlling up to 32 functions
- Customizable user interface with three design options
- Suitable for heating and cooling applications with KNX actuators
- Flush mounting for elegant integration into living spaces
- Includes bus connection terminal and mounting plate for easy installation.

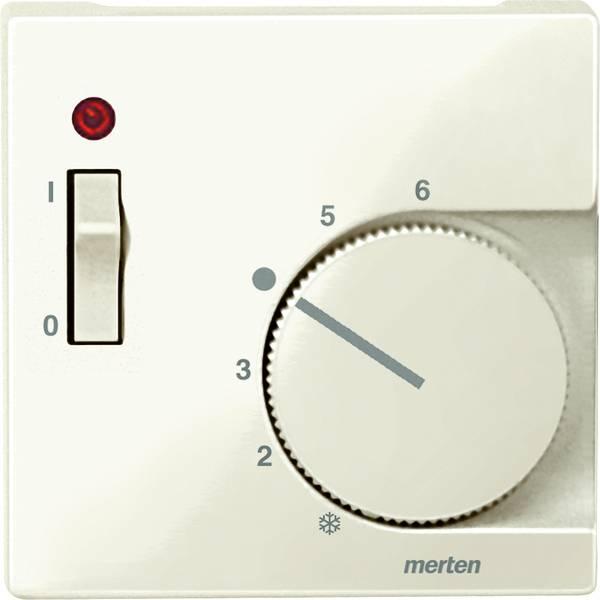

3. Merten Central plate
Merten central plate ws/gl 534844
Manufacturer: Merten
Designation: Central plate ws/gl for RT.-Insert Type: 534844
Design: Central plate
Imprint/marking: Other
Scannable symbol/accessible: No
Use: Thermostat
Suitable for bus system push-button coupling: No
Mounting type: Screw mounting
Control window/light outlet: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Color: White
RAL number (similar): 1013
With labeling field: No
With exchangeable lens/symbol: No
Suitable for protection class (IP): IP20
Impact resistance: IK01
Extremely flat design. To be completed with room thermostat insert with switch 536302/04. Material thermoplastic brilliant. Color white glossy. EAN: 4042811032814.
4. Merten RTR 230V w. change-over and central plate, MEG5762-6052
The Merten MEG5762-6052 RTR 230V room thermostat is a reliable solution for temperature control in various applications, including electric underfloor heating and air conditioning systems. This device offers manual temperature control in the range of 5 to 30 degrees Celsius and is equipped with a changeover contact for flexible use. The integrated range limitation in the adjustment knob ensures user-friendly handling. The thermostat is suitable for flush mounting and features a robust metal construction. With a nominal voltage of 230 V and a switching capacity of up to 2200 W for heating applications, it is suitable for both heating and cooling applications. The simple installation is done via screw fastenings and plug terminals, making integration into existing systems easy.
- Suitable for electric underfloor heating and air conditioning
- Manual temperature control from 5 to 30 degrees Celsius
- Integrated range limitation in the adjustment knob
- Robust metal construction
- Easy installation with screw fastening and plug terminals.
5. Merten MEG5762-6034 Room thermostat Screw mounting 5 to 30°C
The Merten MEG5762-6034 room thermostat is a reliable control device for temperature regulation in indoor spaces. It is particularly suitable for electric underfloor heating and air conditioning systems. With a temperature range of 5 to 30 °C, it allows for precise adjustment of the room temperature. The device features a screw mounting, ensuring easy installation. The integrated range limitation in the adjustment knob ensures that the temperature remains within the desired boundaries. The thermostat operates with a changeover contact and offers a switching differential of 0.5 K, enabling efficient control of heating and cooling performance. The rated voltage is AC 230 V, and it is designed for mains operation. The housing, made of painted thermoplastic in anthracite, provides an appealing look and durability.
- Integrated range limitation in the adjustment knob
- Switching differential of 0.5 K for precise temperature control
- Suitable for electric underfloor heating and air conditioning
- Easy installation via screw mounting
- Robust housing made of painted thermoplastic.
6. Merten RTR 24 V w. change-over and central plate, MEG5763-6052
The Merten RTR 24 V Room Thermostat MEG5763-6052 is a reliable solution for temperature control in various applications, including electric underfloor heating and air conditioning systems. This device allows for precise control of room temperature and is particularly useful when an auxiliary heater needs to be locked. The thermostat features an integrated adjustment knob for range limitation and offers easy installation through screw fastening and plug terminals. With a temperature range of 5 to 30 degrees Celsius and a switching differential of 0.5 K, the thermostat ensures effective and user-friendly temperature regulation. The robust metal housing guarantees durability and reliability in use.
- Suitable for electric underfloor heating and air conditioning
- Integrated range limitation in the adjustment knob
- Switching differential of 0.5 K for precise temperature control
- Robust metal housing for high durability
- Easy installation with screw fastening and plug terminals.
7. Merten Central plate f. 535814
The Merten 535814 central plate is a specially designed component for use with floor temperature controllers. It features an exceptionally flat design that allows for harmonious integration into various living environments. Made from high-quality thermoplast with a matte finish, the plate not only offers an appealing look but also high durability. The central plate is available in the color group anthracite, seamlessly fitting into modern interior styles. It is designed for screw mounting, ensuring easy installation. This central plate is not suitable for smart home applications and has an IP20 protection rating, making it ideal for use in dry indoor spaces.
- Exceptionally flat design for aesthetic integration
- Made from high-quality, matte thermoplast
- Suitable for use with floor temperature controllers with switch 537100
- Easy installation through screw system.

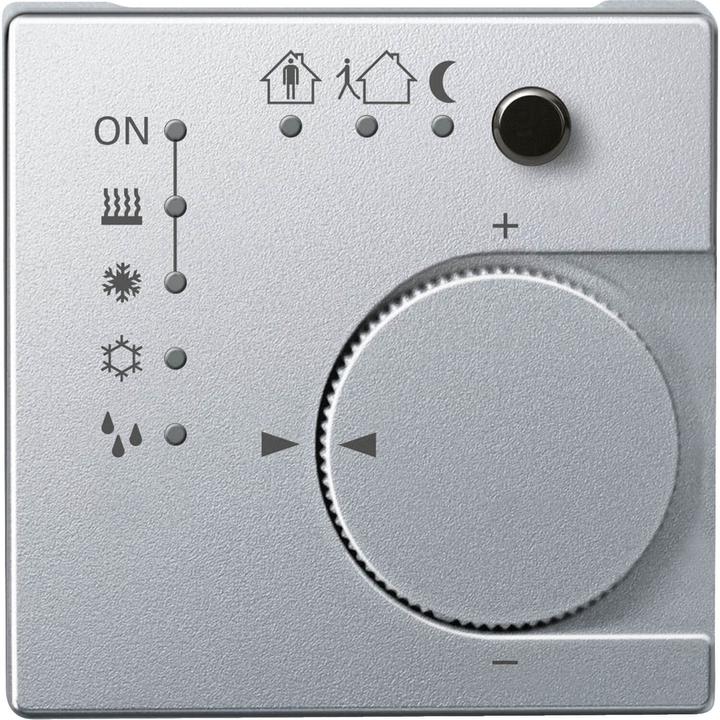

8. Merten KNX room thermostat UP/PI w. 616860
Merten 616860 KNX RTR UP/PI w.push-button-.
9. Merten RTR 24 V w. change-over and central plate, MEG5763-6050
The RTR 24 V room thermostat from Merten, model MEG5763-6050, is a reliable solution for temperature control in various applications, including electric underfloor heating and air conditioning systems. This device is specifically designed for use in system designs and offers easy integration into existing heating and cooling systems. The thermostat features a changeover contact and allows for precise temperature control in the range of 5 to 30 degrees Celsius. With a switching differential of 0.5 K, it ensures efficient regulation of room temperature. The installation is done flush-mounted, and the device is equipped with screw fastenings and terminal blocks, making installation easier. The RTR 24 V is made of robust metal and offers a protection class of I, making it a safe choice for use in residential and commercial spaces.
- Integrated range limitation in the adjustment knob
- Thermal feedback for improved temperature control
- Manual temperature control without a display
- Protection class IP30 for additional protection
- Compatible with actuators for flexible applications.

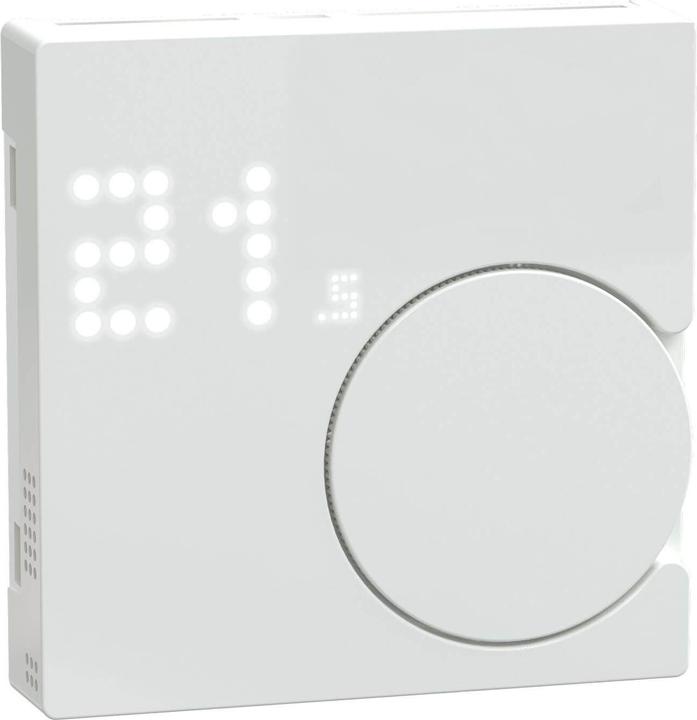

10. Merten MERT room temperature module
With the Wiser room temperature thermostat module in system design, you can easily control your room temperature. The room temperature thermostat is compatible with both inserts: a 16A relay for electric heating (underfloor heating, radiators, hydronic underfloor heating) and a 2A relay for hydronic systems (radiators, underfloor heating, circulation pumps, and motorized valves). The thermostat supports the Zigbee 3.0 wireless protocol and can be integrated into the Wiser Home System. The power consumption in standby (no load switching) must be less than 0.5W. The dimensions are (H) 71 mm x (W) 71 mm x (D) 20 mm, and the weight is 45g. The room temperature module serves as a temperature controller for electric underfloor heating with a floor sensor (only in combination with the 16A relay insert). The thermostat also acts as a room temperature controller for hydronic or electric applications and as a heating or cooling solution for hydronic floor systems (only in combination with a 2A relay). It is a smart Wiser thermostat or stand-alone with a display for easy setup, integrated into the system design. Remote access and easy scheduling with the Wiser Home App are also possible. The thermostat must be operated with a single-phase input power of 230VAC +/- 10% at 50-60Hz and can be installed in a CE60 wall box. It achieves an IP30 protection rating. The transmission frequency is 2.4GHz, and the operating range is 30m in open space. The room temperature thermostat complies with CE and CB certifications. It offers a quick installation solution without the need for an internet connection. The color of the thermostat is stainless steel. The universal input allows for energy savings in combination with a sensor when no one is in the room. A heating solution for customers who utilize connectivity and remote control as part of the Wiser Home System.
