BMZ Fast charger for 26V Panasonic Deluxe e-bike battery Flyer Deluxe
E-bike chargerProduct details
The BMZ charger is suitable for Panasonic 25.2 / 25.9 Volt (26 Volt) batteries with 18 and 24 Ah. It cannot charge the older 26V 12Ah battery.

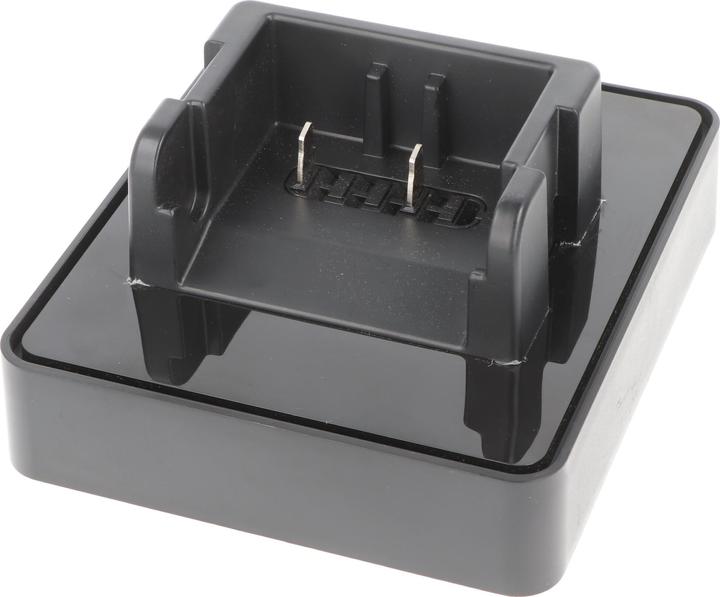

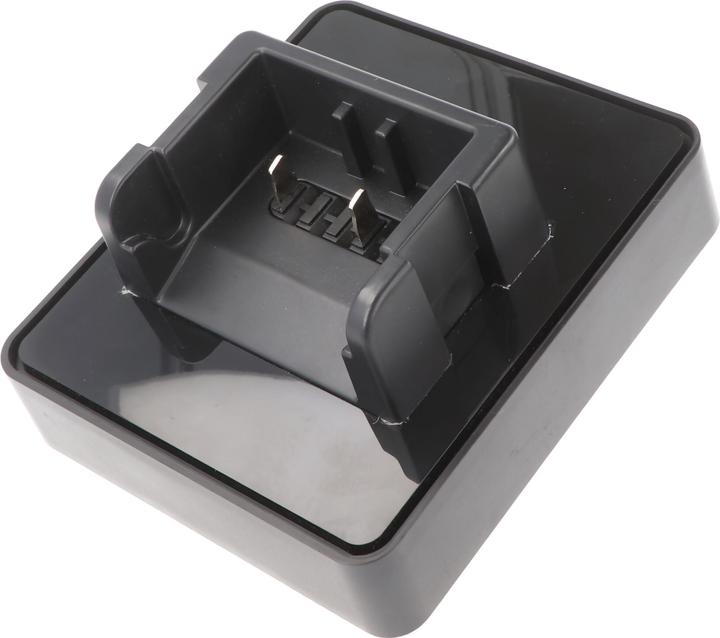

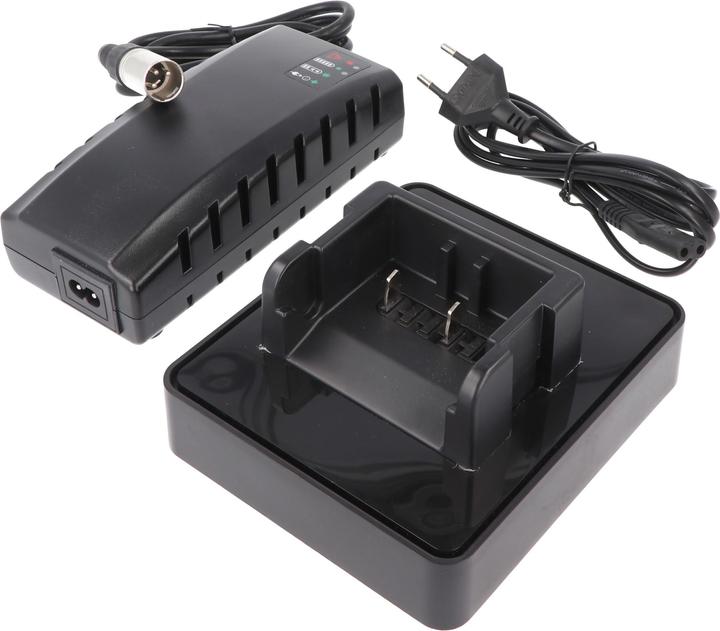

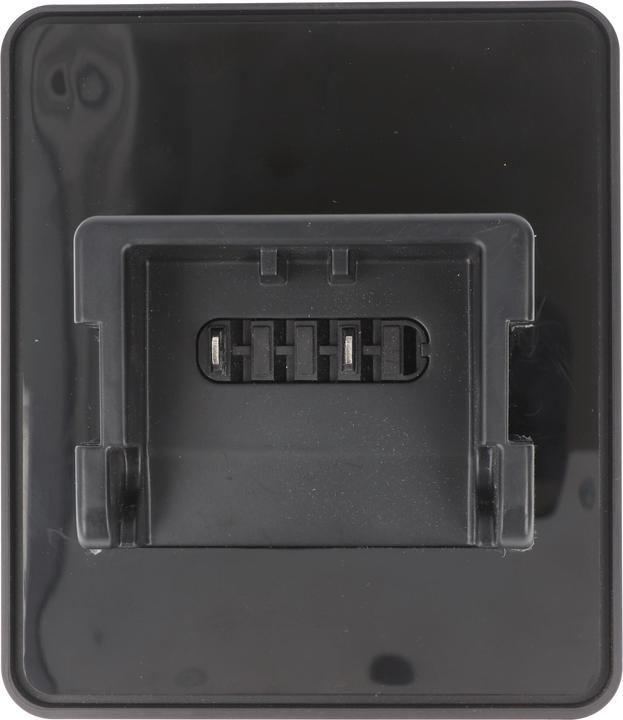

It is designed for lithium-ion batteries with a 3-pin round plug charging socket. Includes a charging station for the Derby Cycle 26V battery, with a charging end voltage of 29.4 volts and a charging current of 4 amperes. This results in a charging capacity of 117.6 watt-hours.
Technical specifications:
Designation: Charger 26V, charging end 29.4V 4A 3-pin round plug
Label: Battery charger for 25.2V Li-Ion battery
Model: BSC29404000, charging current: 4A
Power: max. 117.6 watt-hours
Nominal output voltage: 25.2 VDC
Charging end voltage: 29.4 V +/-1%
Input: 230V / 50Hz / 2.0A max
Output: 29.6/ 4A
Plug: 3-pin round plug
Color: black

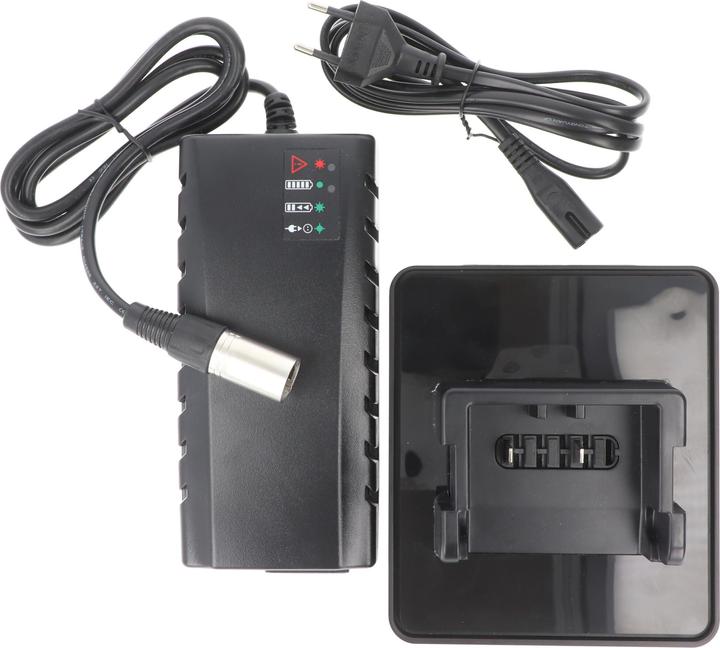

LED indicators: 1x red LED, 1x green LED
Mode: Standby: slow green blinking
Battery is charging: green blinking
Battery fully charged: solid green light
Severe error: red blinking
Compatibility: only for Panasonic 25.2 / 25.9 Volt / 26 Volt battery with 18 and 24 Ah.
Caution: cannot charge the older 12Ah battery, i.e., not suitable for the 25.2 / 25.9 / 26V 12Ah battery.
Voltage | 25.20 V |
Item number | 17836626 |
Manufacturer | BMZ |
Category | Electric bike batteries + Chargers |
Manufacturer no. | 28946 |
Release date | 11.12.2021 |
Colour | Black |
Exact colour description | Black |
E-Bike accessory type | E-bike charger |
Battery category | Device batteries |
Battery | Battery + charger |
Battery type | Li-ion |
Battery size | Device specific |
Voltage | 25.20 V |
Voltage | 29.40 V |
Charging current (max) | 4 A |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | Quick charger for 26V Panasonic Deluxe e-bike battery Flyer Deluxe |
Weight | 1686 g |
Ingredients | The BMZ charger, but only for Panasonic 25.2 / 25.9 Volt (26 Volt) batteries with 18 and 24 Ah (really cannot charge the 26V 12Ah battery of that time)BMZ 26V 4A charger with station for Panasonic Derby Cycle only 18Ah and 24Ah batteries Kalkhoff for lithium-ion batteries with the charging socket connection round plug 3-pin. Including charging station for the Derby Cycle battery 26V or final charging voltage 29.4 volts, 4 ampere hours charging current. This results in a charging capacity of 117.6 watt hours. ATTENTION: really cannot charge the 12Ah battery of that time, i.e. not suitable for the 25.2 / 25.9 / 26V 12Ah battery Technical data:Designation: Charger 26V, charging end 29.4V 4A 3-pin round plugLabelling: Battery charger for 25.2V Li-Ion batteryModel: BSC29404000, charging current: 4A power: max. 117.6 watt hoursNominal output voltage: 25.2 VDCClosed charging voltage: 29.4 V +/-1%Input: 230VC / 50Hz / 2.0A maxOutput: 29.6/ 4A Plug: 3-pin round plugColour: black, Total weight: 1686 grams LED indicators: 1x red LED, 1x green LED Mode: Standby: green flashing slowlyBattery charging: green flashingBattery fully charged: green lit onSevere fault: red flashing Compatibility: only for Panasonic 25.2 / 25.9 volt / 26 volt battery with 18 and. |
