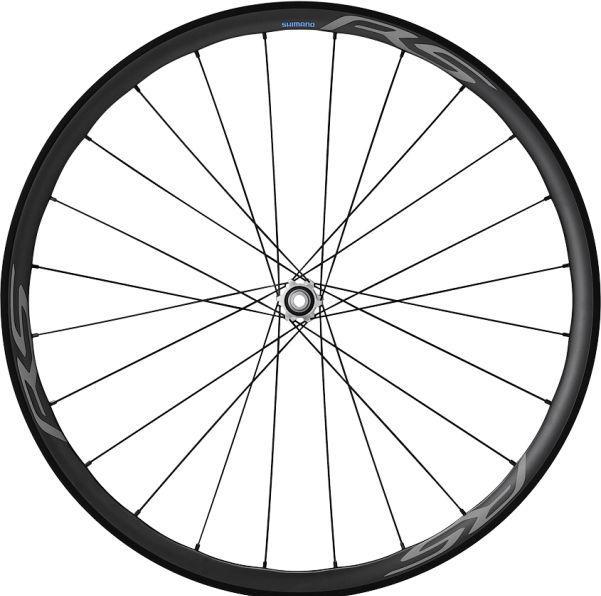

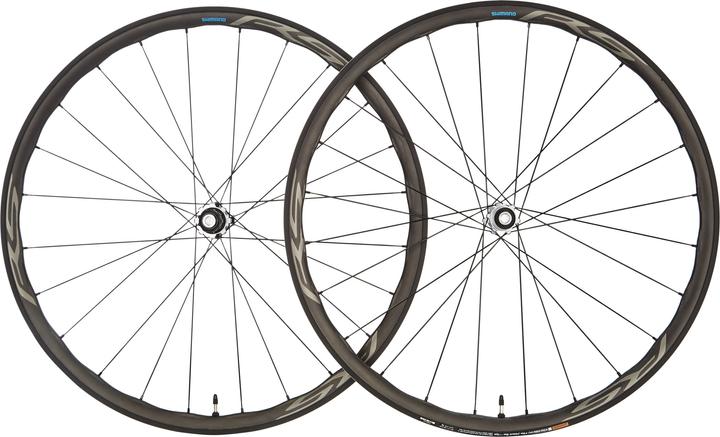

Shimano WH-RS770 wheelset
Wheelset, 28"More than 10 items in stock at supplier
Product details
The Shimano WH-RS770 road bike wheels offer a lot of road bike technology in an attractive total package for ambitious amateur athletes. Light, stiff, and aerodynamic, the clincher wheelset combines the virtues of an all-round performance wheelset. The aluminium rims with large carbon reinforcements and a striking look can not only keep up with the weight of some full carbon rims but are also very stable and, thanks to their aluminium brake flanks, outperform some competitors in terms of braking performance. You can rely on the best Shimano quality for the hubs and the freewheel. Polished bearing rings reduce friction to a minimum. The Digital-Click system makes precise bearing adjustment faster and easier. The freewheel is suitable for Shimano 10-speed and 11-speed road bike gears. Cold forged and milled aluminium hub bodies and oversized 7075 aluminium axles reduce the weight of the wheel to under 1,800 g.
- Purpose: Road bike
- Details:
- Reliable, 11-speed compatible wheels for everyday use
- Easy maintenance and longer life due to adjustable cone bearings
- 8-/9-/10- and 11-speed compatible
- Recommended tyres: 700 x 23C - 28C
- Axle system: VR 12x100 mm
- Axle standard: Thru axle

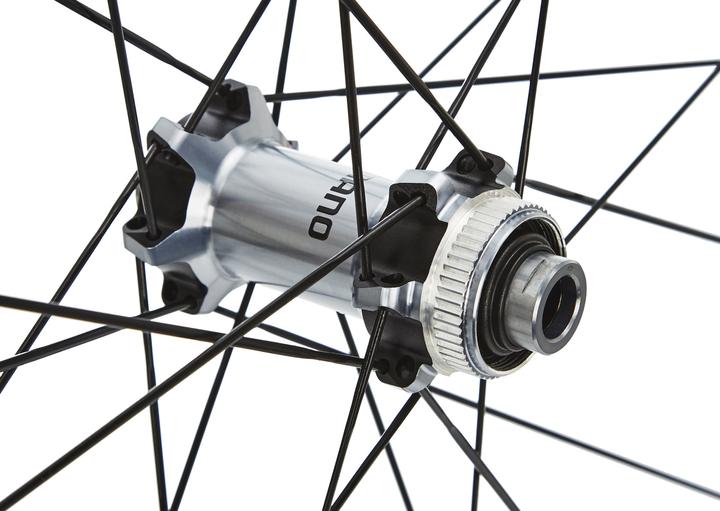

- Design: Set hub front
- Diameter axle: 12 mm
- Ball bearing: Sealed
- Installation width: 100 mm
- For thru axle
- Material: Aluminium

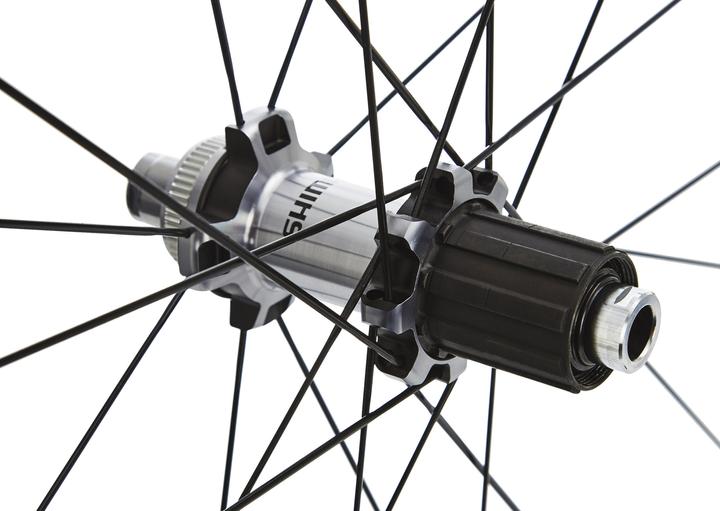

- Number of spokes: 28 rear hub
- Diameter axle: 12 mm
- Material: Aluminium / steel freewheel body
- Type of sprocket: Shimano / SRAM plug-in cassette
- Ball bearings: Sealed
- Installation width: 142 mm
- Number of spokes: 28
- Number of gears: 11
- For thru axle rims
- Width: 23 mm
- Mouth width: 17 mm
- Material: Alloy / Carbon
- ETRTO (width x diameter): 700C x 17 mm
- Tyre type: Clincher tyre
- Size: 28 inch
- Tubeless suitable
- Type: Hollow chamber
- Height: 28 mm
- Braking system: Disc brake
- Profile height: Low.
BIke wheel type | Wheelset |
Ability brake type | Disc brake Center lock |
Suitable tyre type | Wired-on tire |
Width | 23 mm |
jaw width | 17 mm |
Axle system | VR 12x100 mm |
Weight | 1639 g |
Item number | 7009048 |
Colour | Black |
Exact colour description | Black |
Material group | Carbon, Metal |
Material | Aluminium (for hubs), Stainless steel (for spokes), Steel (for freewheel body) |
Bike area of use | Racing bikes |
Wheel size | 28" |
BIke wheel type | Wheelset |
Ability brake type | Disc brake Center lock |
Rim model | WH-RS770 |
Material rim | Aluminium, Carbon |
Rim height | 28 mm |
Suitable tyre type | Wired-on tire |
Width | 23 mm |
jaw width | 17 mm |
Valve hole diameter | 6.50 mm |
Axle system | VR 12x100 mm |
Axis standard | Thru axle |
Installation width front | 100 mm |
Installation width rear | 142 mm |
Diameter axle front | 12 mm |
Diameter rear axle | 12 mm |
Gear rim type | Shimano / SRAM plug-in cassette |
Cassette compatibility | 11-speed |
Freewheel | Shimano/SRAM 8/10-speed |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Shimano WH-RS770 wheelset |
Weight | 1639 g |
