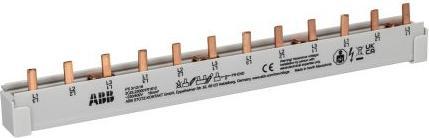

ABB Stotz S&J phase bar PS3/12/16
Manufacturer: ABB Stotz S&J
Designation: Phase bar
Type: PS3/12/16
Number of phases: 3
Number of poles: 12
Suitable for number of units: 4
Pitch: 44698 mm
Cross-section: 16 mm²
Length: 214 mm
Width in pitch units: 12
Rated uninterrupted current Iu: 80 A
Electrical connection type: Pin
Insulated: Yes
Rated impulse voltage: 4.5 kV
Conditional rated short-circuit current Iq: 25 kA
Max. rated operational voltage Ue: 690 V
Rated short-time withstand current Icw: 25 kA
Suitable for devices with N conductor: No
Suitable for devices with auxiliary switch: No
Colour: Grey

ABB Stotz S&J phase busbar PS3/12/16: More details

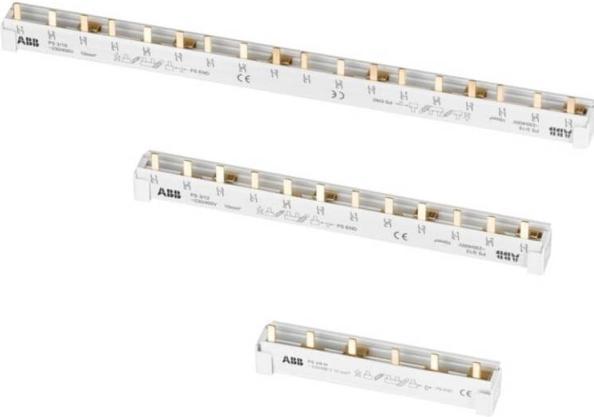

ABB phase bars enable safe and economical cross wiring of automatic circuit breakers, residual current devices, and other modular installation devices. The following must be observed for correct phase busbar selection: terminal type (double terminal or cage terminal), number of poles of the devices (1, 2, 3, 4, 1+N or 3+N), device type (automatic circuit breakers, residual-current devices or modular installation devices), combinations of the various device types, use of fuse carriers, use of fuse carriers and other modular installation devices, combinations of the different types of devices, use of circuit breakers with auxiliary switches mounted on the right and below, busbar connection cross-section (current-carrying capacity), number of modules (choice of standard busbars or shortenable busbars).
