Number of contacts: 2
Contact configuration: 2 NO/2 NC contacts
Mounting type: DIN rail mounting
Contact current rating: 4 A DC, 6 A AC
Contact rated voltage: 250 Vdc, 400 Vac
Contact number and position: 2 pole changeover contact
Connection type: screw fixing
Operating temperature min: -25°C
Operating temperature max: +60°C
Operating temperature range: -25 to +60 °C
Series: S800

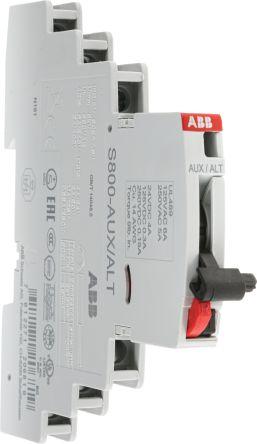

S800 series MCB accessories are designed for use with S800 series single, double, and triple pole heavy-duty circuit breakers. Auxiliary contacts are 9 mm wide and mount on the left side of the circuit breaker. Shunts operate at 70-110% of rated voltage and also mount on the left side of the circuit breaker. DIN rail mounting is available, and a locking strap prevents accidental operation of the circuit breaker when using a safety lock.
