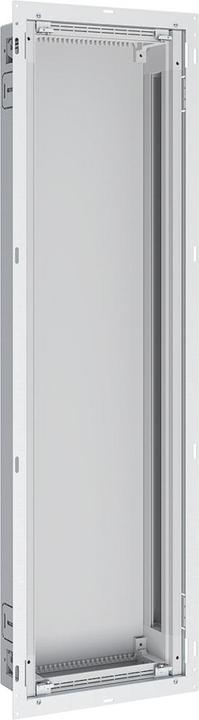

ABN flat manifold. UP/HW T110mm UL17X. Manufacturer: ABN. Designation: Flachverteil. UP/HW T110mm 84PLE, 1x7-row. Type: UL17X. Mounting type: flush-mounted. Number of rows: 7. Width in pitch units: 12. Type of cover: without. Transparent cover/door: no. Material of enclosure: steel. Height: 1150 mm. Width: 300 mm. Depth: 110 mm. Installation depth: 110 mm. Installation height: 1120 mm. Installation width: 300 mm. Internal depth: 80 mm. Earth terminal block: no. Neutral terminal block: no. DIN rail: no. With mounting plate: no. Mounting option: yes. EMC version: no. Colour: white RAL number: 9016. Degree of protection (IP): IP30. With lock: no. Type of lock: other. Signal passing door: no.

ABN flat distribution UP/HW T110mm UL17X: further details. Field distributor height: 7, UP/HW empty housing, width: 1, PLE 84, UL series, in modular delivery form with: flush-mounted/HW empty enclosure without cover frame/door, plus optional cover frame with solid door, cover frame with inspection door, cover frame with door including ventilation slots, cover frame with door including ventilation slots and plastic insert for WLAN. Enclosure use is prepared for the installation of modular complete panels, series UL, X, empty enclosure (flush-mounted/HW-trough), without cover frame, without door. Prepared for the installation of complete panels or for continuous mounting plates. Select required cover frame with door.
