Series 6417

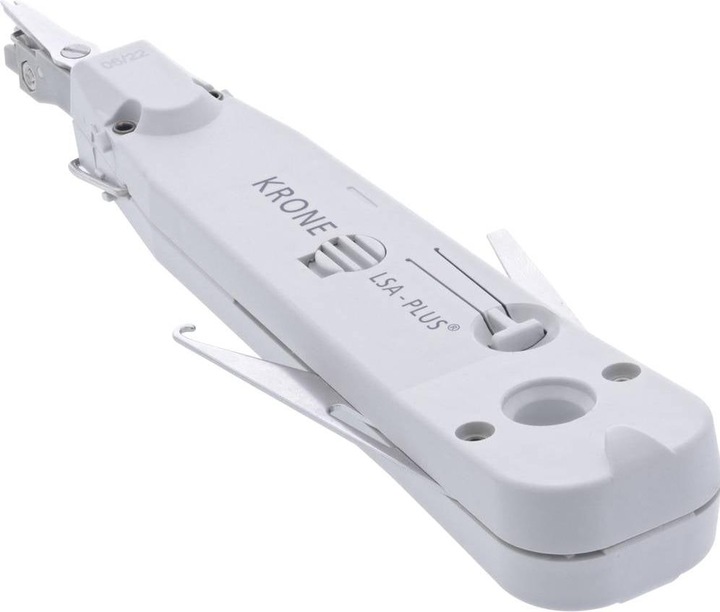

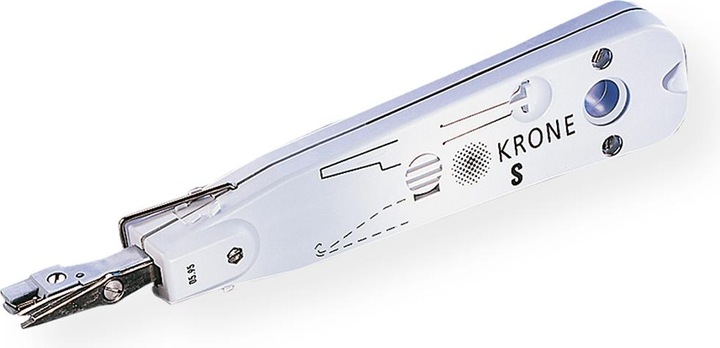

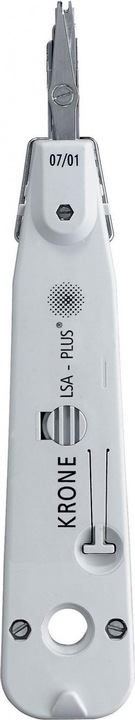

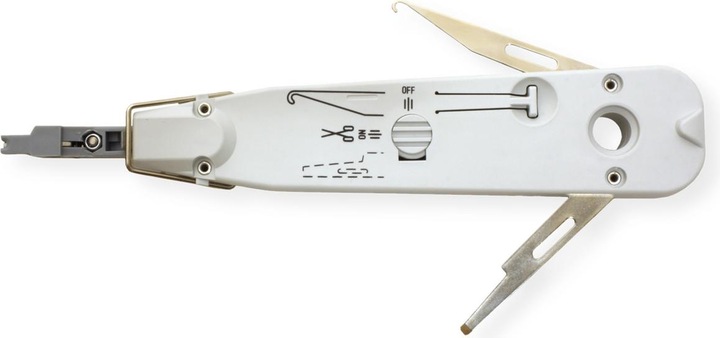

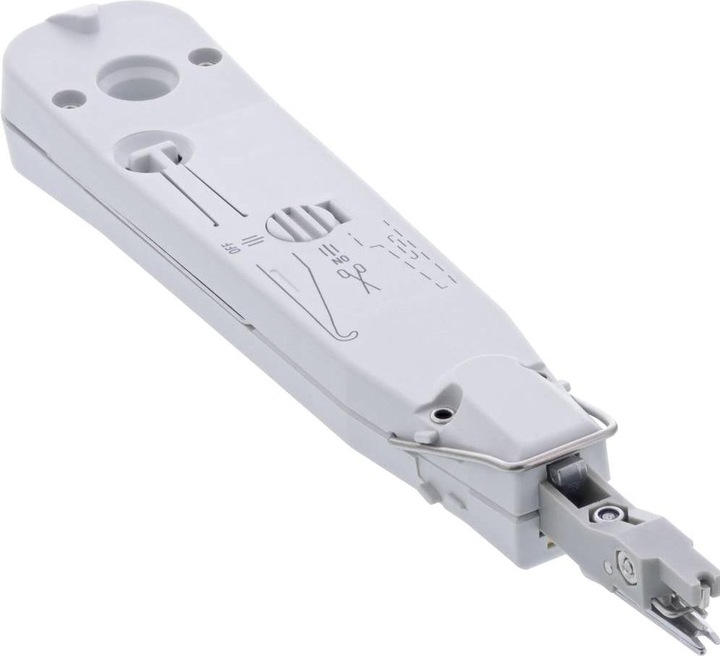

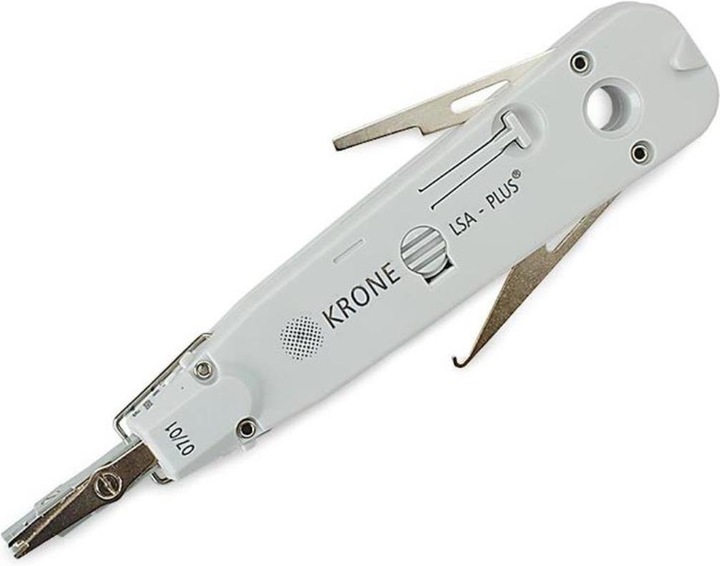

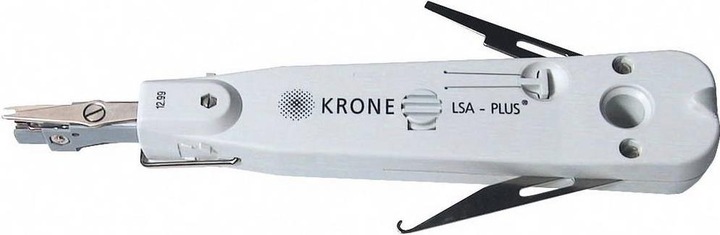

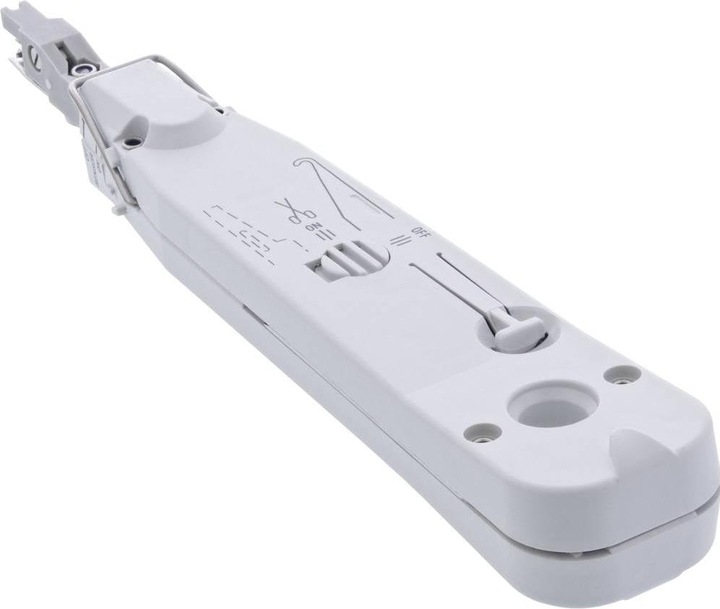

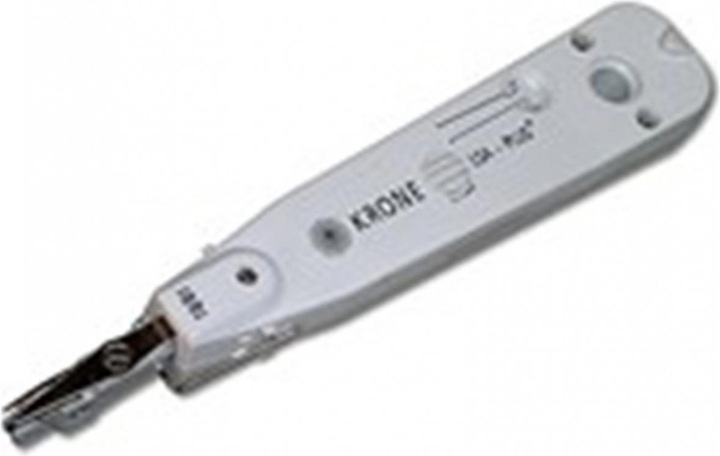

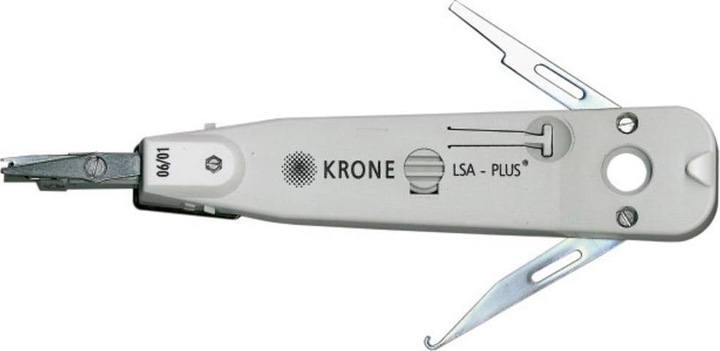

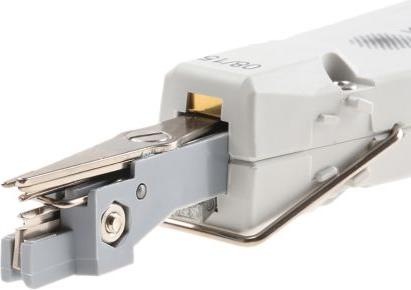

Connection modules LSA-PLUS and LSA-Profile as well as tools from TE Connectivity. A series of connection and separation modules LSA-PLUS and LSA-Profile from TE Connectivity. The insertion and extraction tool is equipped with a sensor that cuts off excess wire as soon as a connection is completed. The wire diameter range of the LSA+ insertion tool is from 0.35 to 2.6 mm with an outer diameter of 0.7 to 2.6 mm. The LSA-PLUS insertion tool also includes a cutting lock clamp, an extraction hook, and a blade for removing modules.

Special features:

• LSA-PLUS separation strip with 6 out of 3 shielded wire pairs
• LSA-PLUS separation strip with screw terminals for wires up to 2.5 mm²
• LSA-PLUS separation strip is numbered 0 to 9
• LSA-PROFILE separation strip is numbered 0 to 9
• LSA-Profile switching module, printed bridging side 1 to 0.
