Berker Socket
10 pieces in stock at third-party supplier
Number of cans2
Product details

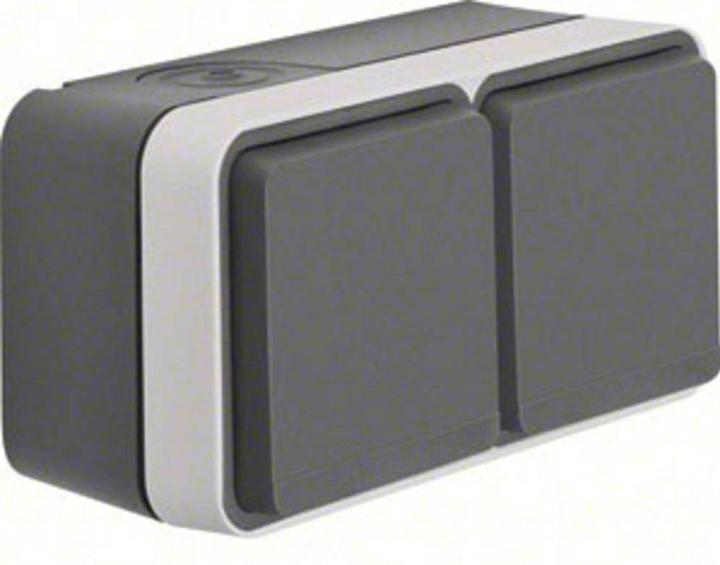

Socket with protective contact, 2-fold horizontal with flap cover and two sliders in gray. This socket is suitable for horizontal installation and features wired inserts with terminal blocks. It has an entry for two cables as well as an entry for a cable or pipe. The upper and lower entries for the cables are arranged laterally, making it particularly suitable for installation next to door frames. A full-area seal under the housing base ensures the sealing of the rear of the housing. The flap cover closes flush and can be manually locked to achieve protection class IP55. The housings have easily accessible, funnel-shaped mounting holes. A Wago 2-wire connection terminal for wiring is included, as well as two snap-in places for Wago 2-wire connection terminals in the housing base. There is plenty of space for wiring under the inserts' bases (hollow base), and the installation of the insert in the housing is easily done by snapping in. The frame is securely fixed to the housing via a bayonet quick-release. The connection terminals comply with VDE 0620 and are designed according to DIN 49440. The housing screws and flap cover springs are made of stainless steel. Installation is done as surface-mounted installation. Material: plastic, thermoplastic, impact-resistant.
Number of cans | 2 x |
Socket type | CEE 7/3 |
Area of use | Inside |
Exact colour description | Dgrey, Light grey matt |
Mounting type | Finery |
Item number | 20348711 |
Colour | Grey |
Exact colour description | Dgrey, Light grey matt |
Material group | Plastic |
Material | Plastic |
Socket type | Built-in socket |
Socket type | CEE 7/3 |
Number of cans | 2 x |
Protection type (IP code) | IP55 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Finery |
connector type | Screw connection |
Additional properties | Halogen-free |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Radio frequency | 50 Hz |
Control type | Manual |
Configuration effort | Manual configuration |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 16 cm |
Width | 14.70 cm |
Height | 7.60 cm |
Weight | 260 g |
Length | 16 cm |
Width | 8 cm |
Height | 7 cm |
Weight | 220 g |
Product Safety |
