Active FM / DAB+ Window Adhesive Antenna Funline

With the new Blaupunkt Funline AM/FM/DAB/DAB+ antenna, you no longer need additional antennas in your vehicle. This antenna is perfectly equipped for both analog and digital reception.

No additional splitter is required. The antenna can be connected directly to the radio. No drilling is necessary, and it can be removed without leaving any residue.

Technical Specifications:
• Integrated amplifier
• Blue LED lighting (can be turned off)
• Separate power supply 9–16 volts
• Power consumption < 80 mA
• AM 0.15–6.2 MHz
• FM 76–108 MHz, +6 dB, noise figure < 6 dB; DAB 174–240 MHz, +18 dB, noise figure < 4 dB
• Connector: SMB (DAB) + DIN (FM/AM)
• Cable length: 2.85 m
• Operating temperature: -30 °C – +95 °C
• Compatible with all Blaupunkt radios
• DAB/FM antenna can also be used individually
• Non-destructive installation, suitable for non-tinted/non-heated windows

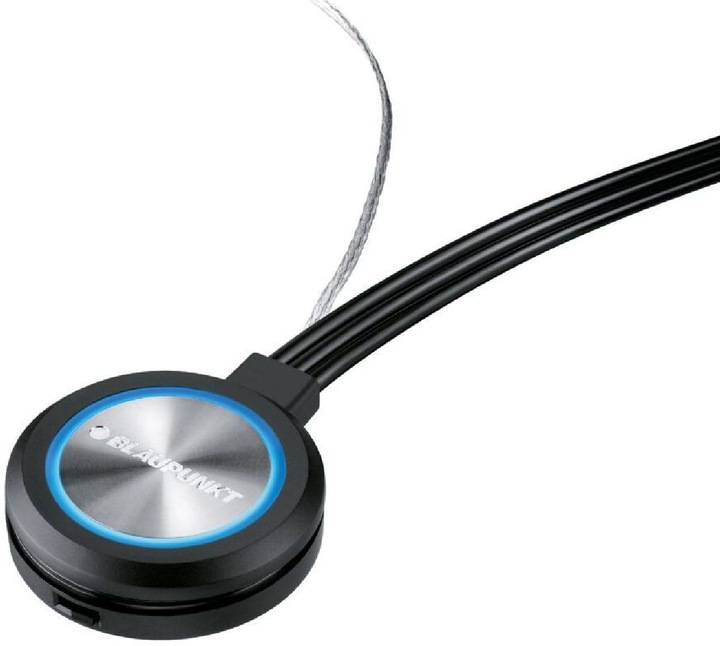

• Length of radiator approximately 450 mm (2 pieces)
• Amplifier module approximately ⌀ 50 mm x 15 mm.
