Blum Drilling jig MODUL cross mounting plates

1 pcs.
Price in EUR including VAT, plus shipping
3Ratings
Delivered between Mon, 19.5. and Tue, 20.5.
7 items in stock at third-party supplier
Supplied by

Product details

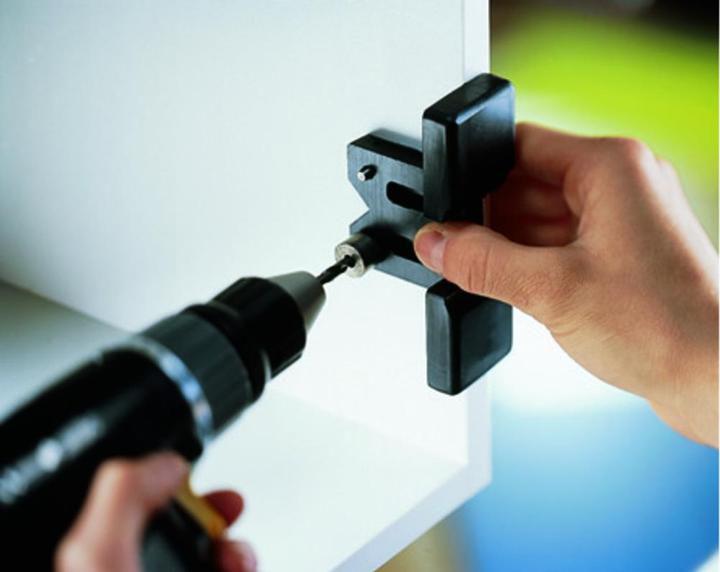

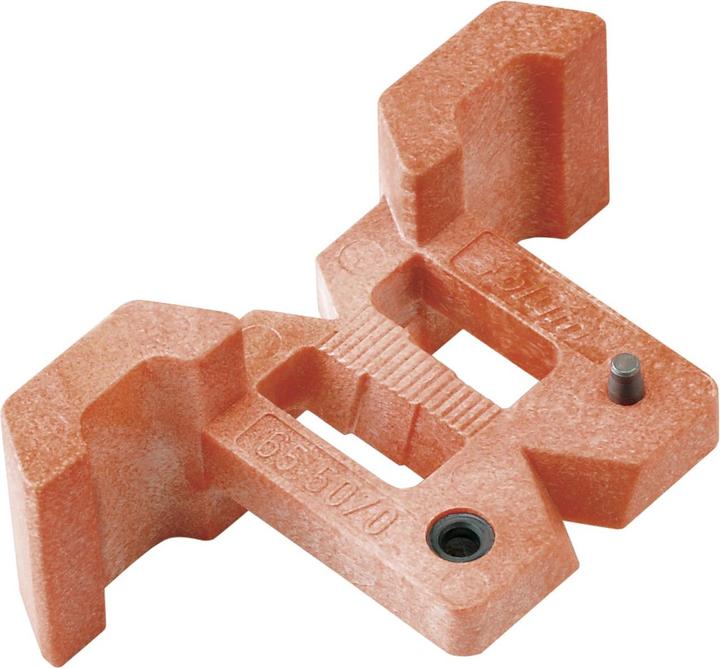

The MODUL cross-mounting plate drilling guide from Blum is a precise tool specifically designed for drilling fastening positions for cross-mounting plates and cross-adapter plates. With a diameter of 5 mm, this guide allows for exact positioning and is ideal for use with BLUMOTION and TIP-ON door systems. The integrated marking function ensures that the measurement of 32 mm can be drilled accurately, significantly simplifying the installation of furniture fittings. The guide is suitable for both edge processing and general application in furniture assembly. Made from a robust combination of steel and plastic, it offers durability and reliability in use. Included in the package are the drilling guide itself and a drilling depth stop, which further optimizes the use of the tool.

  • Precise guide for cross-mounting plates and cross-adapter plates
  • Integrated marking function for accurate drilling at 32 mm
  • Suitable for edge processing
  • Package includes drilling guide and drilling depth stop.

Key specifications

Area of use
Inside
Length
10 mm
Exact colour description
Orange
Material
Steel / plastic
Item number
14801788

General information

Manufacturer
Blum
Category
Builders’ fittings + Wood connectors
Manufacturer no.
03280079
Release date
20.2.2021

Colour

Colour
Orange
Exact colour description
Orange

Material

Material group
Metal
Material
Steel / plastic

Building hardware + wood connectors Features

Area of use
Inside

Origin

Country of origin
Austria

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
10 mm

Package dimensions

Length
16.40 cm
Width
11.10 cm
Height
6.80 cm
Weight
105 g

14-day cancellation right
30-day right of return
24 Months Statutory warranty
