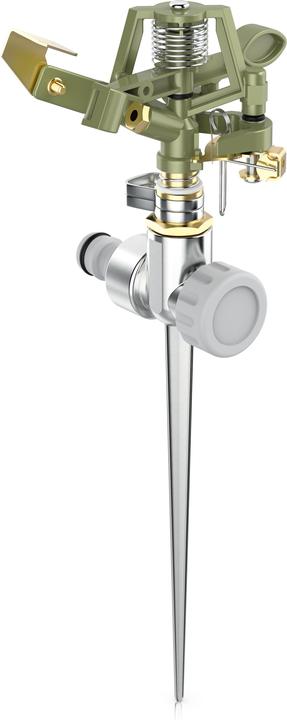

Pleasure and quality when watering the garden - with the high-quality 360 degree metal spray head!

Made of metal, this spray head offers outstanding resistance to pressure, abrasion and ageing.
Start watering in seconds. Versatile with international standard
standard sizes and a water pressure of up to 6 bar. Get your garden ready for a green oasis!
oasis!

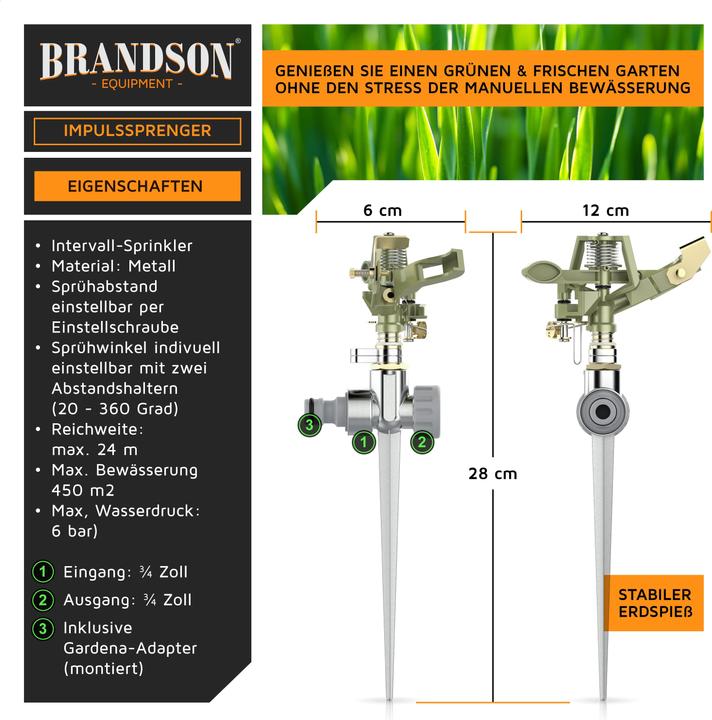

Specifications:

• Intermittent sprinkler

• Material: metal

• Spray distance adjustable with adjusting screw

• Spray angle freely adjustable with spacers (max. 0 - 360 degrees)

• Range max. 12 m

• Maximum area: 450 m2

• Water pressure (max. 6 bar)

• Inlet: ¾ inch

• Serial output: ¾ inch

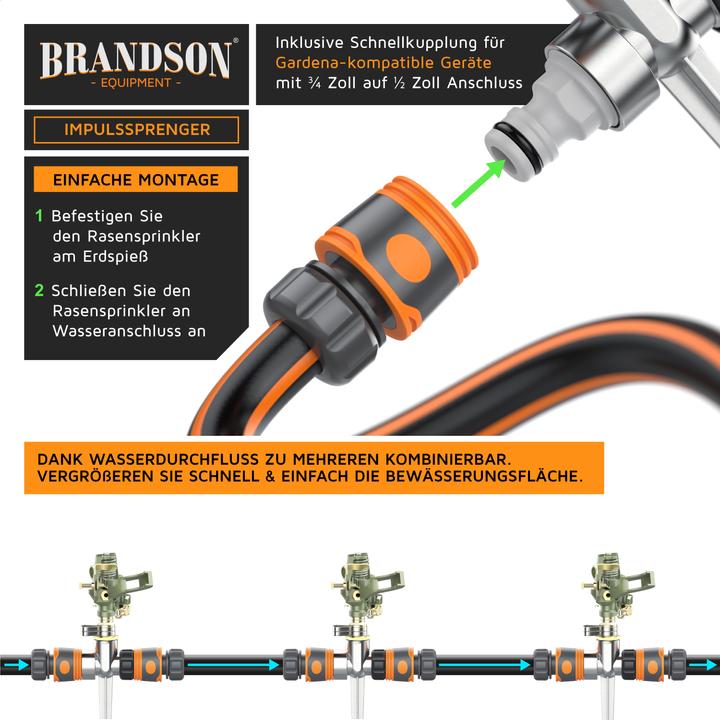

• Incl. Gardena adapter (mounted)

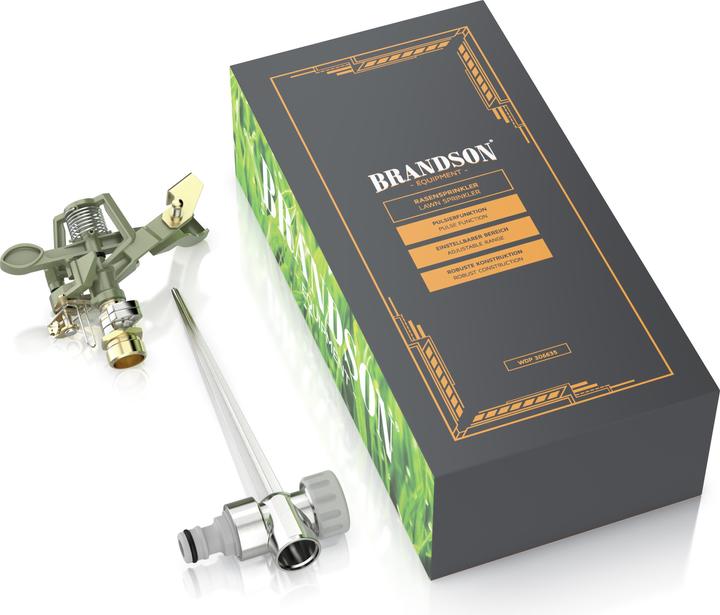

Scope of delivery: 1 x impulse garden sprinkler with ground spike

Dimensions: 28 x 12 x 6 cm | Weight: 330 g

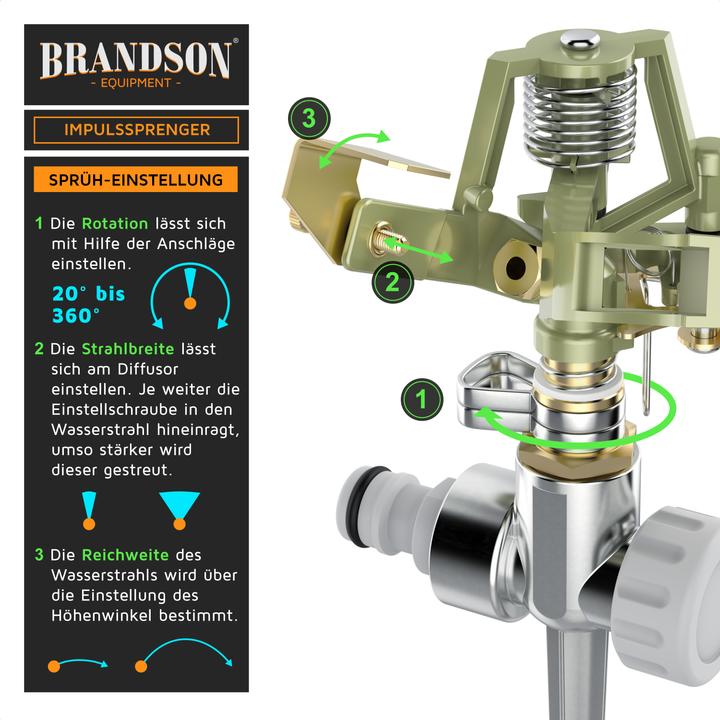

The functions briefly explained

The range of the water jet is determined by the elevation angle (using the rotary wheel).

The jet width can be adjusted on the diffuser, a small screw. The further it extends into the
into the water jet, the more it is scattered.

The spray radius can be adjusted from narrow to wide using the stops. By omitting the
stops, a circular 360° movement can be achieved.

Rotary movement: The fact that the sprinkler continues to move is due to the recoil element, which is
water jet and springs back by means of a spring mechanism. This creates an impulse,
which drives the sprinkler forwards bit by bit (hence "impulse sprinkler"). When the sprinkler reaches the
stop, a switch is triggered which reverses the direction of rotation.
