Supply voltage: 24 VDC
Number of connections: 3
Operation: Direct
Connection: G1/4, internal thread
Connection size: 1/4 inch
Valve position standard: Normally closed
Applications: Liquid, neutral gas
Type: 3/2
Valve opening: 2 mm
Body material: Brass
Max. operating pressure: 10 bar
Operating temperature range: -10 to +55 °C
Minimum operating temperature: -10 °C
Maximum operating temperature: +55 °C
Opening time max.: 15 ms

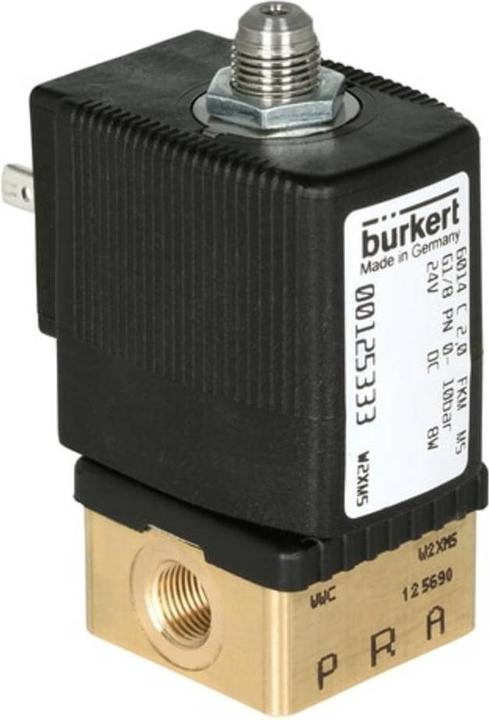

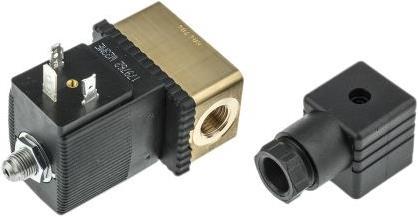

Universal solenoid valve 6014, normally closed with brass body. Coil can be easily replaced without removing the valve. Two female ports and one 1/8" vent port. Coil can be engaged in four 90° offset positions or move freely between them as required. Brass body and high-quality FKM sealant. Epoxy encapsulated coil. Fluid temperature range: -10 to +90 °C. Suitable for use with water, neutral liquids, air, gases, oil, and greases (without additives). Maximum viscosity: 21 mm²/s. Operating temperature: -10 to max. +100 °C. Power consumption: 21 VA (AC inrush current), 12 VA/8 W (constant), 8 W (DC). Protection according to IP65 with cable connector DIN43650C.
