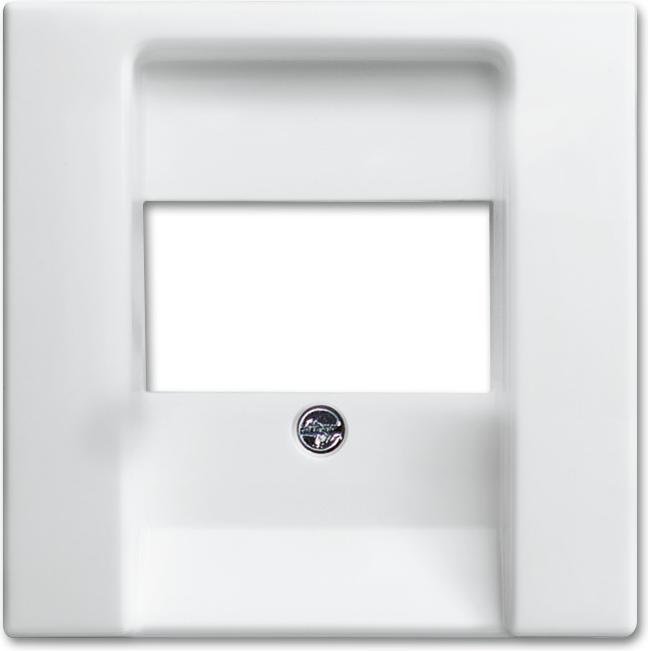

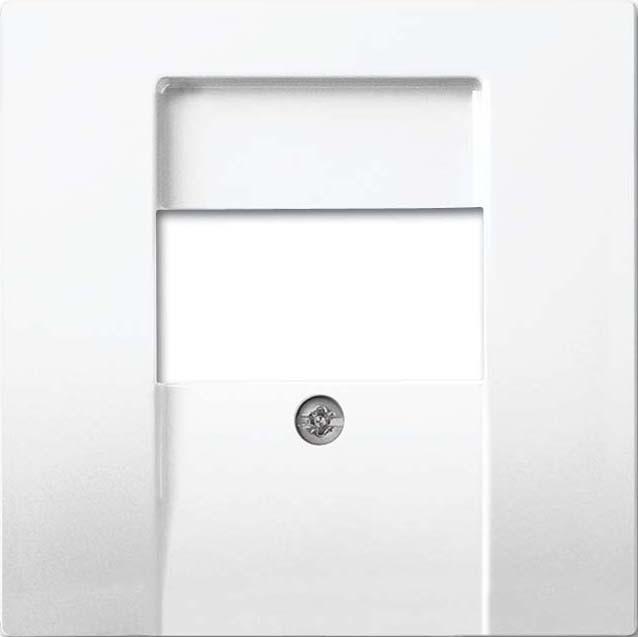

Busch-Jaeger Central Plate Alpine White 2539-914

Manufacturer: Busch-Jaeger
Description: Central plate in alpine white for TAE/data communication
Type: 2539-914
Composition: Central plate
Usage: TAE
Support ring: No
With dust protection: No
With flip cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With print: No
Mounting type: Flush-mounted
Material: Plastic
Material quality: Thermoplastic
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Untreated
Surface finish: Glossy
Color: Alpine white
RAL number (similar): 9010
Transparent: No
Mounting type: Screw mounting
Number of modules (in modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 1
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20
Device width: 55 mm
Device height: 55 mm
Device depth: 9 mm
Min. depth of device box: 32 mm

Busch-Jaeger Central Plate Alpine White 2539-914: additional details
For TAE applications.
For UAE/TAE applications.
For USB, VGA, HDMI socket outlets and communication adapters.
For USB power supply unit use 6472 U.
For speaker socket outlets.
Compatible with item number 0248/0x-101.
For data modules.
Compatible with item numbers 0219/12 and 0219/13.
For modular socket outlets with 90° RJ45 outlet from Telegärtner (series MJ and WE).
EAN: 4011395190722.
