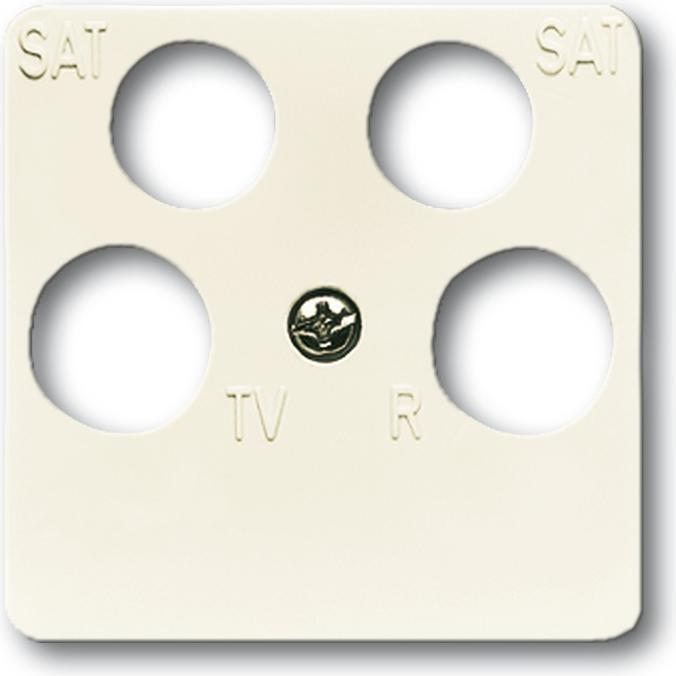

Busch-Jaeger Central Plate ws 1743/10-04-212

Manufacturer: Busch-Jaeger
Designation: Central Plate ws Antenna, 4-fold
Type: 1743/10-04-212
Composition: Control Element
Usage: Satellite
Mounting Ring: no
With Dust Protection: no
With Flip Cover: no
Outlet Direction: straight
Labeling Field: without labeling field
With Print: no
Mounting Type: Flush-mounted
Material: Plastic
Material Quality: Thermoplastic
Halogen-free: yes
Antibacterial Treatment: no
Surface Protection: untreated
Surface Finish: glossy
Color: white
RAL Number (similar): 1013
Transparent: no
Mounting Type: Screw mounting
Number of Modules (for modular design): 1
With Sockets/Couplings: no
Suitable for Number of Sockets/Couplings: 4
With Strain Relief: no
Shielded Sockets: no
Shielded Housing: no
Terminal Block: no
With Lighting: no
Suitable for Protection Class (IP): IP20

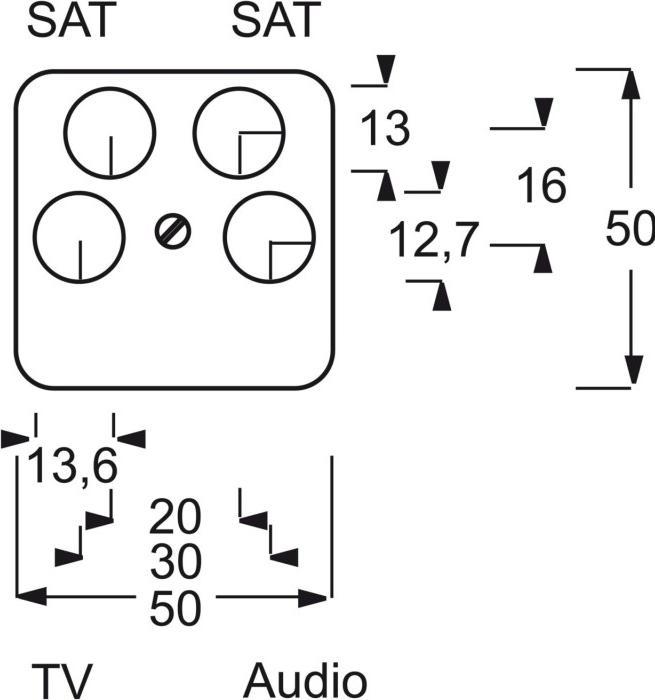

Device Width: 50.2 mm
Device Height: 12.4 mm
Device Depth: 50.2 mm
Min. Depth of Device Box: 32 mm

Busch-Jaeger Central Plate ws 1743/10-04-212: additional details
As a cover for 4-fold antenna socket SAT400/EAS/DC, EAS 405, 413 DAS from the company Ankaro. Only usable with intermediate ring Art. No. 1746-xxx, 1746/10-xxx. Version without flip cover. (see 1746-xxx).
Busch-Duro 2000® SI: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, EAN: 4011395805008.
