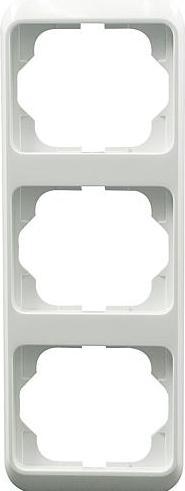

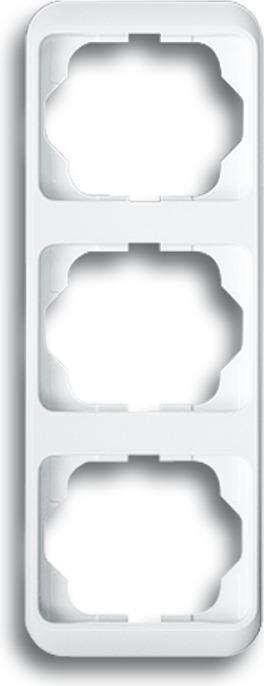

Busch-Jaeger Frame 3-fold 1733-24G

Manufacturer: Busch-Jaeger
Description: 3-fold frame in studio white, vertical
Type: 1733-24G
Number of units: 3
Mounting direction: vertical
Number of units vertically: 3
With mounting frame: no
Flush-mounted installation: yes
Suitable for underfloor channel box: no
Suitable for device installation channel: yes
Suitable for built-in installation: no
Text field/labeling area: no
Material: plastic
Material quality: thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: alabaster/studio white
RAL number (similar): 9016
Transparent: no
With flip cover: no
Protection class (IP): IP20
Impact resistance: IK03
Mounting type: clamp mounting
Width: 81 mm
Height: 223 mm
Depth: 11 mm
Installation width: 70 mm
Installation height: 54 mm
Drilling diameter (opening): 71 mm

Busch-Jaeger Frame 3-fold 1733-24G: further details on the cover frame 3-fold frame vertical.
