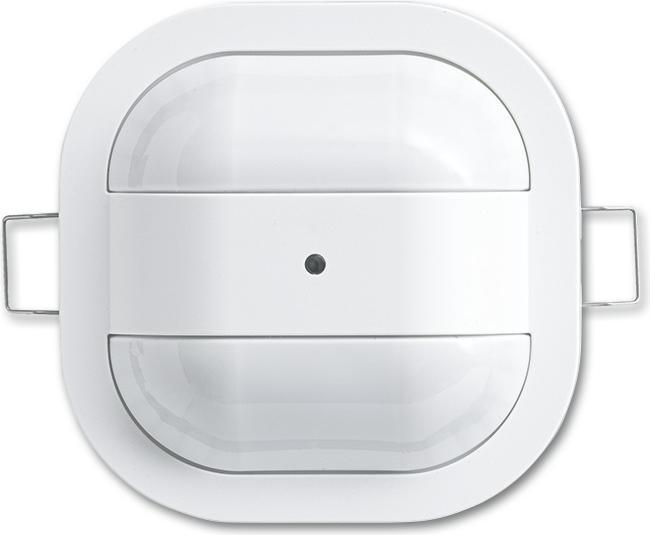

Busch-Jaeger presence detector 6819/68-24

Manufacturer: Busch-Jaeger
Designation: Presence detector
Color: Studio white matt
Type: 6819/68-24
Design: Presence detector
Sensor type: Passive infrared
Creep protection/back field monitoring: Yes
Optimal mounting height: 3 m
Staircase monitoring: Yes
Max. range to one side: 4 m
Max. presence area: 50 m²
Max. range frontal: 4 m
Detection field diameter on floor: 8 m
Remote control: No
Response brightness adjustable: No
Teach function for response brightness: No
Suitable for ceiling mounting: Yes
Mounting type: Other
Connection type: Plug-in terminal
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Finish: Matt
RAL number (similar): 9016
Protection class (IP): IP40
Voltage type: AC
Frequency: 50 Hz
Nominal voltage: 230 V
Angle of detection horizontal: 360°
Suitable for C-load: No
Temperature: -5 °C
Number of switching zones: 496
Extension input: No
Width: 94 mm
Height: 94 mm
Depth: 72 mm
Installation depth: 49 mm
Installation diameter: 68 mm

Further details:
Slave presence detector for extending the detection range of master presence detectors. Detection area (at 3 m mounting height): Circular - sitting persons: up to Ø 6.5 m, walking persons: up to Ø 8 m. Mounting height: 23 mm. Recessed ceiling mounting via integrated spring clips. Anti-twist protection via additional quick-action bracing. Monitoring density: 48 sectors with 496 switching segments. Suitable for suspended ceilings with a panel thickness of 9 to 25 mm. Mounting hole size: Ø 68 mm. Due to physical reasons, the detection range is smaller with central approach.
