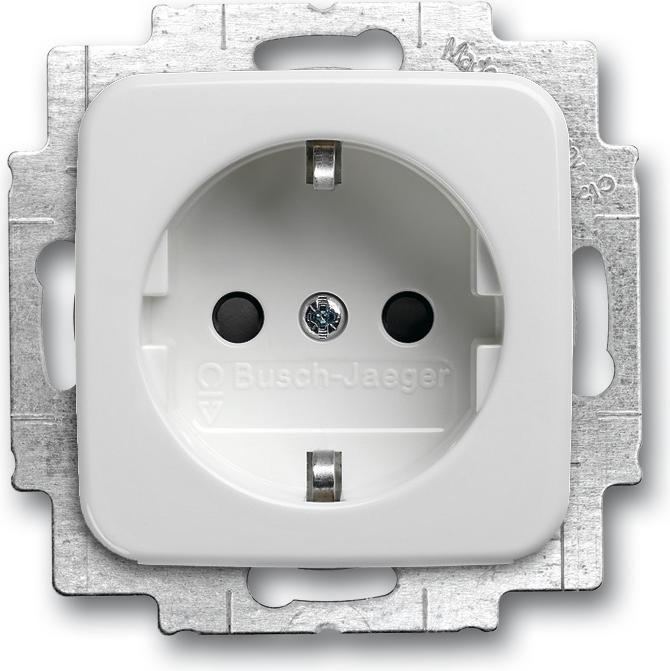

Busch-Jaeger Schuko socket outlet installation 20 EUCBLI-214

Manufacturer: Busch-Jaeger
Designation: Schuko socket outlet installation
Type: 20 EUCBLI-214
Design: Schuko
Protective contact: Yes
Protective conductor contact round: No
Number of active contacts (round): 2
With signal lamp: No
With built-in USB power supply: No
Number of units: 1
Number of modules (with modular design): 1
Number of phases: 1
Imprint/marking: Without
Connection type: Plug-in terminal
With hinged cover: No
With increased touch protection: Yes
Text field/inscription area: No
Color: Alpine white
RAL number (similar): 9010
Transparent: No
Lockable: No
Ejector mechanism: No
Insulated installation: Yes
With function lighting: No
With orientation light: Yes
Overvoltage protection: No
Residual current protection: No
With microfuse: No
Special power supply: Without special power supply
Mounting type: Flush-mounted
Mounting type: Claw/screw mounting
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Surface protection: Untreated
Surface finish: Glossy
Antibacterial treatment: No
With on/off switch: No
With loop-through function: Yes
Rotated central insert: No
Rated current: 16 A
Rated voltage: 250 V
Frequency: 50 Hz
Rated residual current: 0 mA
Suitable for protection class (IP): IP20
Impact resistance: IK03

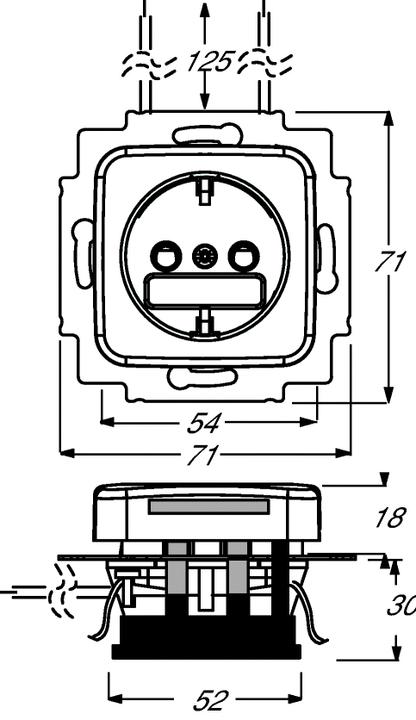

Device width: 71 mm
Device height: 12 mm
Device depth: 32 mm
Min. device box depth: 40 mm
Cover: Central plate
For "difficult conditions" (according to VDE): No

Busch-Jaeger Schuko socket outlet installation 20 EUCBLI-214 features increased touch protection, plug-in connection, 2-pole (2 P + E) with separate connection leads for switching contact, and includes an LED. Schuko® socket outlet Safety+ with shutter (increased contact protection according to VDE 0620).
