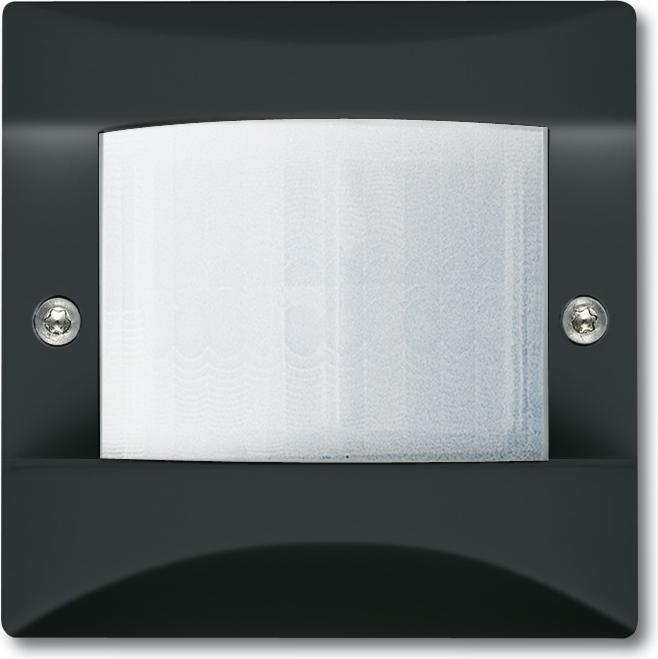

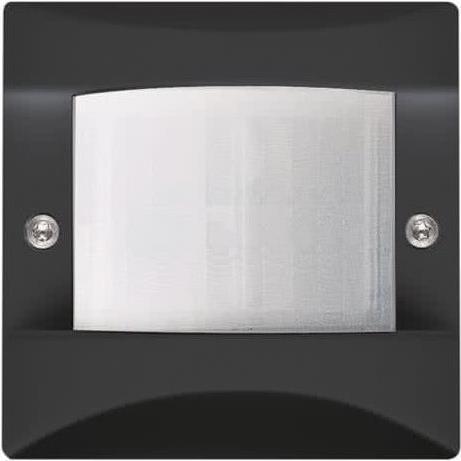

Busch-Jaeger controller anth 6800-35-102C

Manufacturer: Busch-Jaeger
Designation: Controller anth 180 UP combi-lens
Type: 6800-35-102C
Design: Motion detector
Mounting type: Flush-mounted
Constant light control: No
HVAC control: No
Can be networked: Yes
Suitable for wireless transmission: No
Creep protection/back field monitoring: No
Mounting height: 1.1 m
Max. range to one side: 10 m
Max. range frontal: 15 m
Response sensitivity adjustable: No
Response brightness adjustable: Yes
Teach function for response brightness: No
Dimming function with dimmer insert: No
Animal track: No
Staircase monitoring: Yes
Combination motion detector/button switch: No
With orientation light: No
Material: Plastic
Material grade: Thermoplastic
Halogen-free: Yes
Suitable for protection class (IP): IP44
Operating mode switch: No
Min. duty cycle: 10 s
Max. duty cycle: 32 min
Switch-off time: 10 s
Switch-on time: 32 min
Switch-off delay self-learning: No
Detection angle horizontal: 0 °
Compatible with Apple HomeKit: No
Colour: Anthracite
RAL number (similar): 7021
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
IFTTT support available: No

Busch-Jaeger controller anth 6800-35-102C: further details
For automatic switching of loads depending on movement and brightness. For use outdoors. For detection down to the ground. For Busch-Universal relay insert 6401 U-102. IP 44 only in conjunction with frame Allwetter 44®. Monitoring density: 40 sectors with 160 switching segments. Switch-off delay: 10 s to 30 min or short-time pulse 1 s adjustable. With screw fixing. Supplied with sealing ring. Please order the corresponding flush-mounted insert separately.
EAN: 4011395891209.
