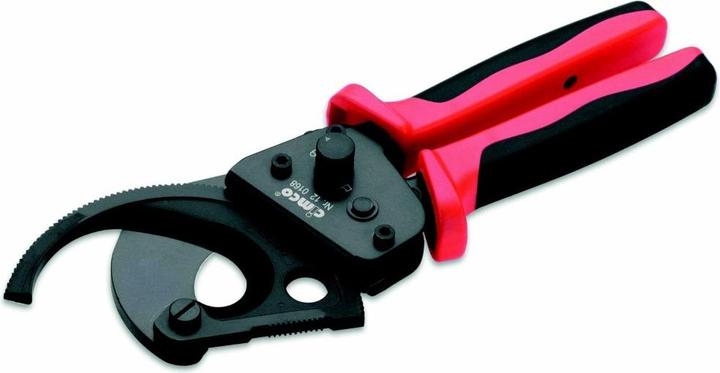

Cimco Cable Cutter 120168

Manufacturer: Cimco
Description: Cable Cutter
Type: 120168
Design/Operation: Mechanical Ratchet Design
Suitable for max. cable diameter: 45 mm
Max. cable cross-section: 300 mm²
Suitable for stranded conductors: Yes
Suitable for fine-stranded conductors: Yes
Suitable for solid conductors: Yes
Suitable for steel wire braid: No
Overall length: 220 mm
Replaceable cutting head: Yes
Replaceable cutting jaws: Yes
With stripping function: No
Insulated: No
Protection insulation 1000 V: No
Grip design: 1-component
With impact protection: No
VDE tested: Yes

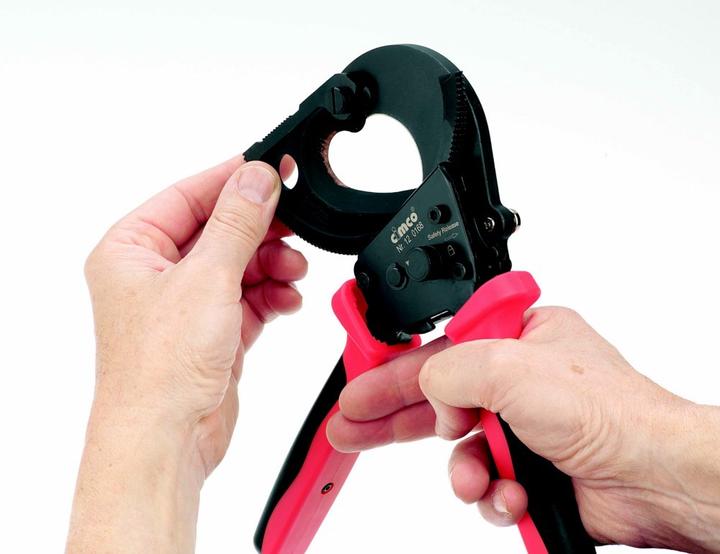

One-hand ratchet cable cutter for crimp-free cutting of cables with a maximum outer diameter of 45 mm. Suitable for copper and aluminum cables, not suitable for steel wire, steel-reinforced cables, and hard-drawn copper and brass conductors. Clean cuts thanks to sharp, specially hardened cutting edges. Despite its compact design, it can be operated one-handed due to the ratchet mechanism with eccentric transmission on needle bearings and ergonomic handles with a narrow opening width. The handles are long enough to support the second hand during peak loads. Weight only 980 g. Movable, fully pivotable blade that can be unlocked in any position, easy to replace (replacement pivot blade Cimco Art. No. 12 9168), handle locking via rotary knob (red marking), easy opening of the cutting blades through a latch that can be locked in the open position.

Max. copper diameter: 45 mm
Flexible: 400 mm² / 800 MCM
Stranded conductor: 300 mm² / 600 MCM
Sector conductor: 3 x 70 mm²
Max. aluminum diameter: 45 mm
Stranded conductor: 400 mm² / 800 MCM
Sector conductor: 4 x 70 mm²
EAN: 4021103201688.
