Product details

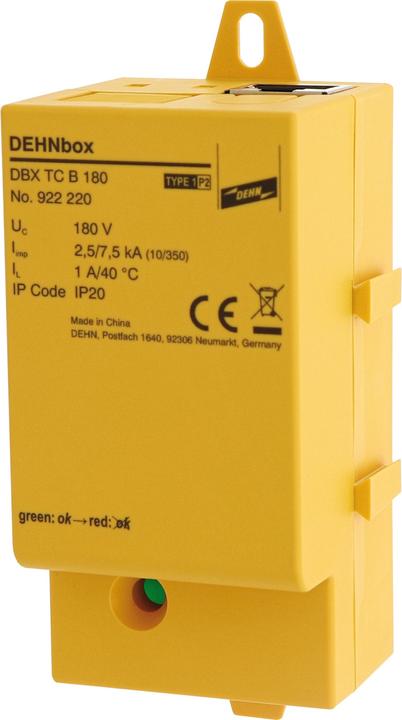

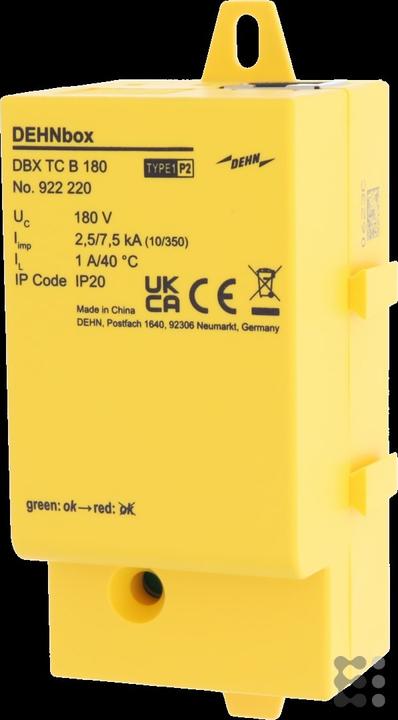

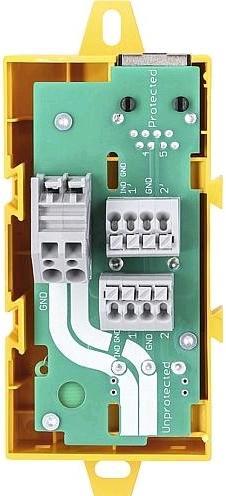

Compact surge arrester in a plastic surface-mounted housing for the protection of information technology interfaces, particularly telecommunications connections up to VDSL and G.fast up to GBits. Option to connect individual arresters in series. Input connection for a double wire using tool-free quick connection technology and integrated strain relief for the connection cable. At the output, a double wire or a patch cable with RJ45 connector can be connected optionally. DBX TC B 180.
Surge protection type | Lightning current arrester |
Number of conductors | 2 x |
mounting style | Finery |
Test class | Type 1 |
Item number | 22613942 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 922220 |
Release date | 7.10.2022 |
Sales rank in Category Surge protection | 12 of 743 |
Surge protection type | Lightning current arrester |
Number of conductors | 2 x |
Lightning impulse current | 7.50 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 180 V |
Protection level | 700 V |
mounting style | Finery |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

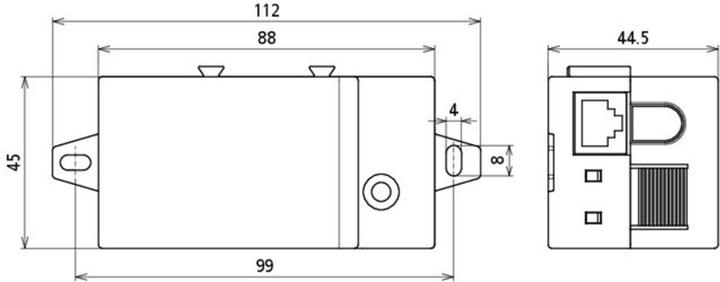

Length | 0.12 m |
Width | 0.06 m |
Height | 0.06 m |
Weight | 210 g |
Length | 12 cm |
Width | 6 cm |
Height | 6 cm |
Weight | 255 g |
