Product details

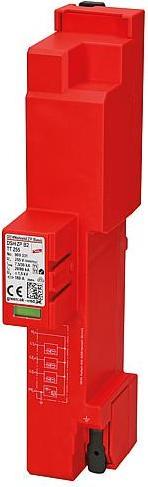

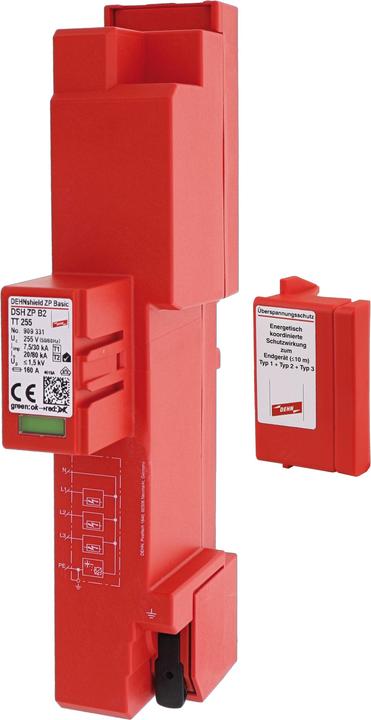

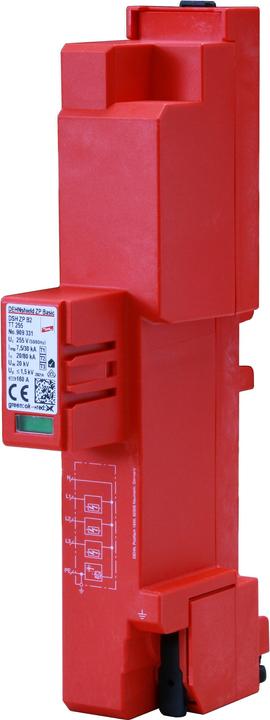

The DEHNshield DSH ZP B2 TT 255 combination surge protector is a highly advanced protective device designed for use in main power supply systems. It meets the requirements of the standard DIN EN 61643-11 and provides protection against lightning currents and overvoltages in TT and TN-S systems. With its tool-free installation via the Click+Power connection technology, the combination surge protector is easy to install and suitable for busbar systems with a spacing of 40 mm. The surge protector is suitable for use in buildings without external lightning protection and ensures high operational safety with a maximum continuous voltage of 255 V AC. The spark gap technology provides a fast response time of under 100 ns, further optimizing protection against overvoltages. The DEHNshield DSH ZP B2 is also equipped with a push-in grounding terminal, which simplifies installation even further.

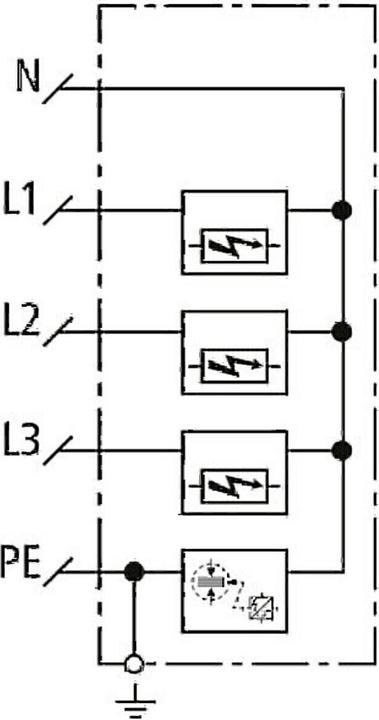

  • Suitable for TT and TN-S systems with 3+1 circuit
  • Tool-free installation via Click+Power connection technology
  • Maximum continuous voltage of 255 V AC
  • Fast response time of under 100 ns
  • Protection level of 1.5 kV for L-N and N-PE.

Key specifications

Protection type (IP code)
IP30
Length
230 mm
Width
120 mm
Height
60 mm
Item number
20026359

General information

Manufacturer
Dehn
Category
Wiring closet technology
Manufacturer no.
909331
Release date
16.3.2022
External links
Manufacturer's site (de)

Distribution cabinet technology Features

Protection type (IP code)
IP30
Nominal voltage
230 V
number of poles
4
input voltage
230 V

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
230 mm
Width
120 mm
Height
60 mm

Package dimensions

Length
23 cm
Width
13 cm
Height
5 cm
Weight
520 g
