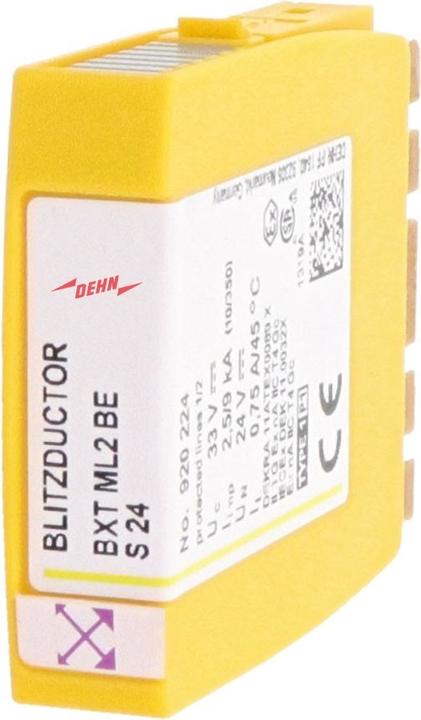

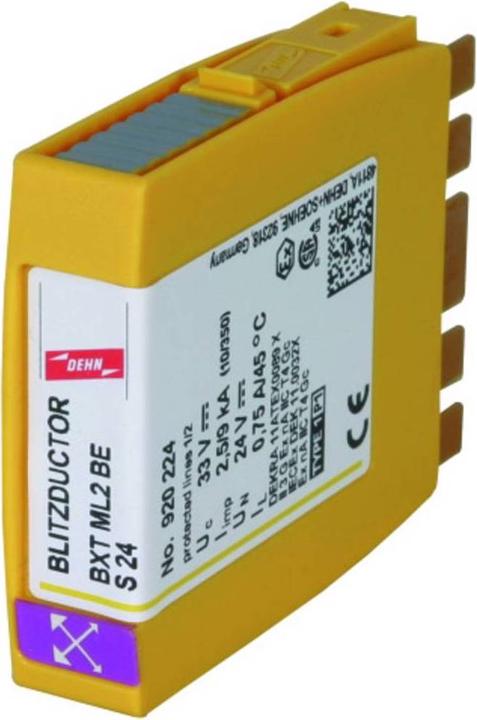

Dehn SOEHNE Combined arrester module BXT ML2 BES24
Price in EUR including VAT
Delivered between Thu, 24.7. and Fri, 25.7.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
free shipping
Product details

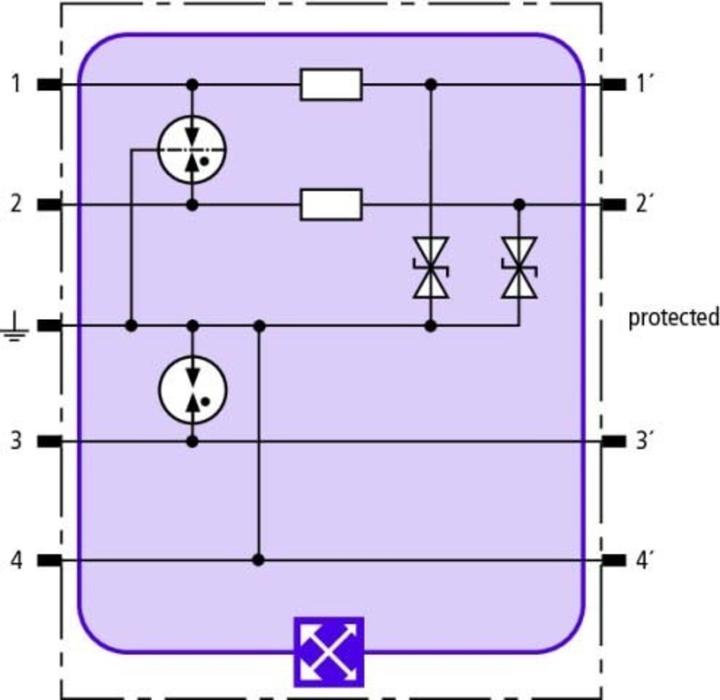

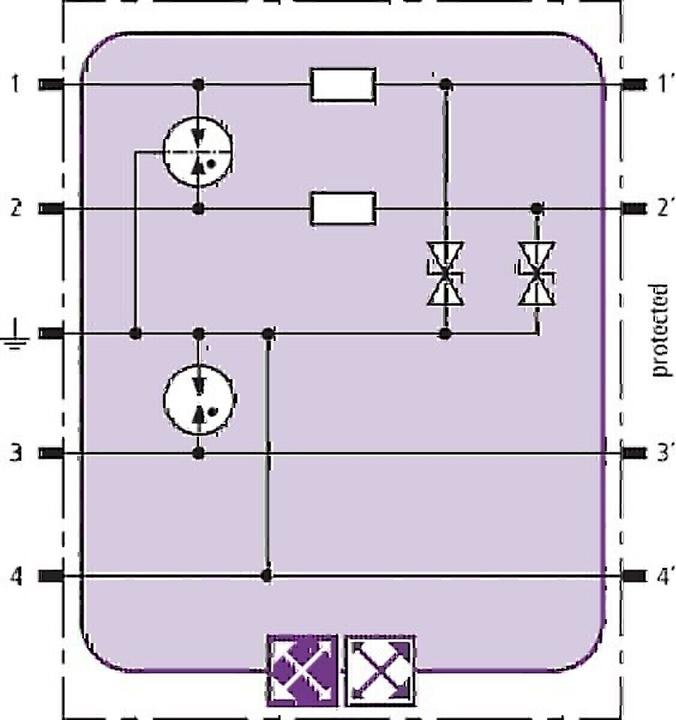

Space-saving combined arrester module with LifeCheck for the protection of two single conductors with common reference potential, as well as asymmetrical interfaces. It offers optional direct or indirect shield grounding. LifeCheck detects thermal or electrical overload conditions, after which the arrester must be replaced. The indication is contactless through DEHNrecord LC, SCM, or MCM.
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Item number | 12900020 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 920224 |
Release date | 12.3.2020 |
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Lightning impulse current | 9 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 24 V |
Protection level | 90 V |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

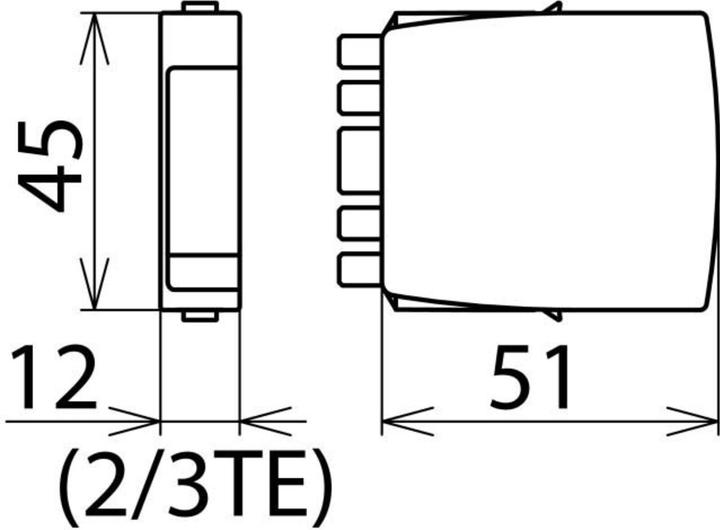

Width | 0.01 m |
Height | 0.05 m |
Length | 6.20 cm |
Width | 6.20 cm |
Height | 2.10 cm |
Weight | 38 g |
Specifications may include unverified machine translations.
14-day cancellation right
30-day right of return
30-day right of return
24 Months statutory warranty
2 additional offers
