Newly designed set according to DIN 14800-5:2013-12.

Box 1:

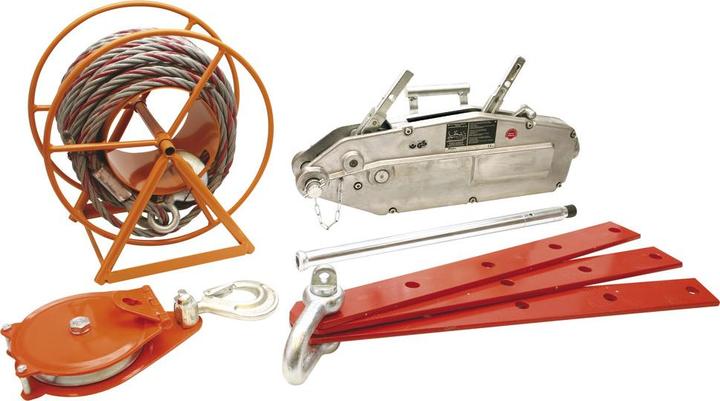

1 piece Dönges FireBox made by Zarges, according to DIN 14880-6-LM (800 x 400 x 330 mm), with partitioning and stickers.
1 piece multi-purpose hoist Wadra SZ-832
1 piece lever tube
1 piece spare shear pin
1 piece foldable pulley, single pulley, for pulling force 64 kN

Box 2:
1 piece Dönges FireBox made by Zarges, according to DIN 14880-6-LM (800 x 400 x 330 mm)
1 piece edge rider 250 x 240 x 170 mm
2 pieces round slings according to DIN EN 1492-2 made of polyester, load capacity 8 t, useful length 2 m
1 round sling according to DIN EN 1492-2 made of polyester, max. load 8 t, working length 4 m
3 shackles A 4 DIN 82101 load capacity 4 t
Supplied separately
1 piece rope, 16 mm, 30 m long, with load hook, on reel
1 piece ground anchor size 2 with 12 pegs

Optionally can be ordered
1 piece crowbar DIN 14853-1500
1 piece squared timber

Selection criteria:
Pulling force: 32 kN

Technical data:
Tractive force: up to 32 kN
Weight: 190 kg

Art. Number: JD14800-5-MZ32W-2013
Shop number: 217503.
