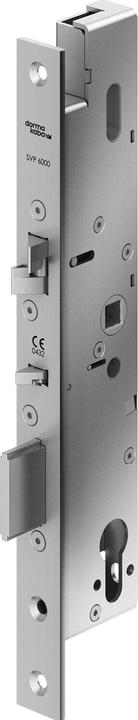

Self-locking panic switch lock with split handle nut, optimized mechanical locking mechanism, and feedback via integrated monitoring contact. Function: compatible with cylinders of all types, including electronic and freewheeling cylinders. With status queries for detecting locked (> 90%), unlocked (< 10% of the bolt travel), door open/closed via control latch, as well as handle activation/panic release and cylinder contact. External handle is disengaged in power-off state (operating current) or engaged (standby current) and cylinder contact. The external handle is engaged or disengaged via control of the magnetic coil (e.g., by access control system). The handle in the escape direction is always engaged. The control of the external handle is generated via GND contact using a potential-free normally closed contact (operating current) or normally open contact (standby current). Permanent engagement of the external handle (e.g., for daytime operation) is possible. Two-point locking through spring pre-tensioning after door closure. Universal control latch (24 mm profile variants usable DIN L/R). Certified according to EN 14846. Panic release via handle according to EN 179 or panic bar according to EN 1125, also suitable for fire and smoke protection doors. Tested with compatible rod handles from BKS and ECO. Change function for unlocking via key from outside or engageable external handle. Steel bolt 20 mm excluding. 9 mm split square nut. Corrosion-protected lock case in DIN dimensions, profile and included strike plate made of stainless steel. Burglary protection up to RC-2 in suitable door systems possible. Power consumption: max. 0.4 A or 0.2 A, contact load: max. 30 V DC, 1.5 W. Universal connection to 12 V DC / 24 V DC (stabilized) without prior adjustment. Uniform connection via the SVP-A 1100 connection cable (to be ordered separately).

• Profile version: Flat profile square
• Case thickness (mm): 20
• Type: 6710
• Profile material: Stainless steel.
