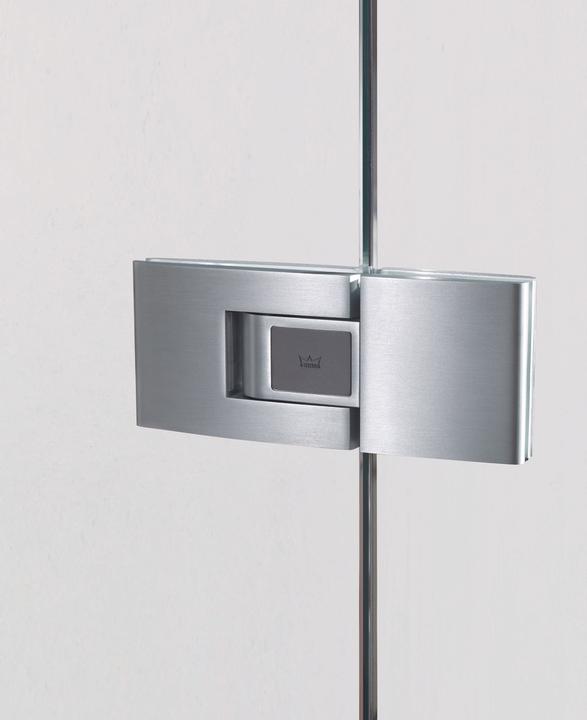

Band with spring-assisted self-closing function without damping. Max. torque 12 Nm (with 2 bands). Application area: single or double-leaf interior doors. Suitable for humid environments (not for sauna applications). Versions available for wall or frame mounting (with surface-mounted or recessed mounting plate) as well as for mounting on glass side panels. Max. side panel width 1500 mm. Locking at a 90° opening angle relative to the zero position. Quick and easy zero position adjustment. TÜV certification/monitoring regarding quality and production process with confirmed 500,000 movement cycles. Not suitable for flush doors.

Locking point: 90°. Glass thickness (mm): 8, 10, and 12. Material: anodized silver aluminum. Mounting type: glass-to-glass. Type: tensioner. Max. leaf height (mm): 2500. Max. load capacity (kg): 65. Max. leaf width (mm): 1000. Leaf width from (mm): 700. Brand: DORMA-Glas. Content summary (PAA): 1.
