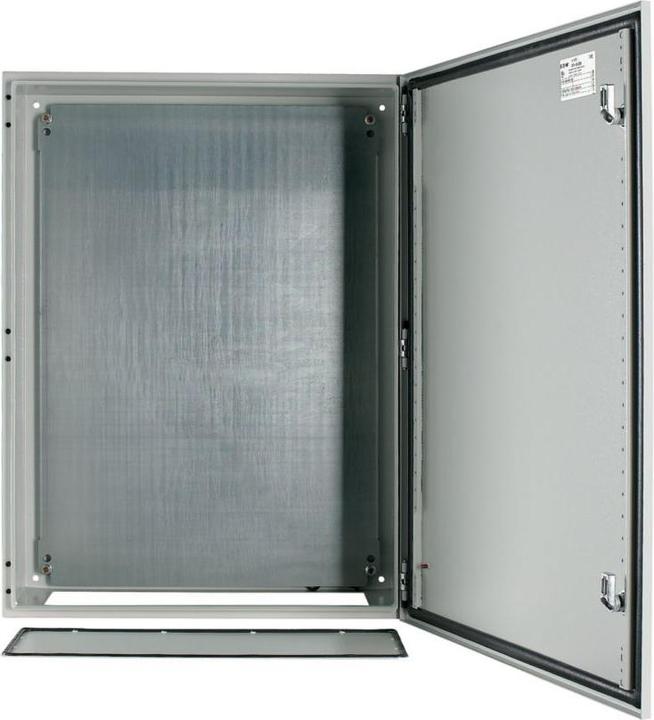

CS enclosure with mounting plate CS-86/250, dimensions 800x600x250mm. This CS wall enclosure features a door with an all-round foam seal and an impact resistance category of IK09 according to EN 62262. It includes a base plate with foam seal and a seal with protection in the recessed area. The enclosure has a single door with a limiter on the right side and a door opening angle of 120°. Dowels for door hinges utilize Quick-Change technology. The profiled door strip has a 25 mm perforation for attaching DIN mounting rails or for securing cable hoses or wires. It is equipped with a standardized locking system featuring a metal locking lever and a 3-point bar lock with a mounting plate made of steel sheet.

Scope of delivery includes a lock and a 3mm double-bit useful accessory, such as a comfortable knob PHZ-A-ADD-ON with cylinder lock PHZ-E10/30-GS.

Technical data:

• Color: Gray
• Width: 600.0 mm
• Height: 800.0 mm
• Depth: 250.0 mm
• RAL number: 7035.0
• With mounting plate: Yes
• Number of doors: 1
• Number of locks: 2
• Design in accordance with the EMC Electromagnetic Compatibility Directive: Yes
• With glazed doors: No
• Floor mounting: Yes
• Material: Steel
• Possibility of wall mounting: Yes
• Degree of protection (IP): IP66
• Suitable for outdoor installation: Yes
• Suitable for metric mounting: Yes
• Depth-adjustable mounting plate: Yes
• Combinable: Yes
• With ventilated door: No
• Surface finish: Powder coated
• Installation surface: Yes
• With rear door: No
• Flush mounting: No.
