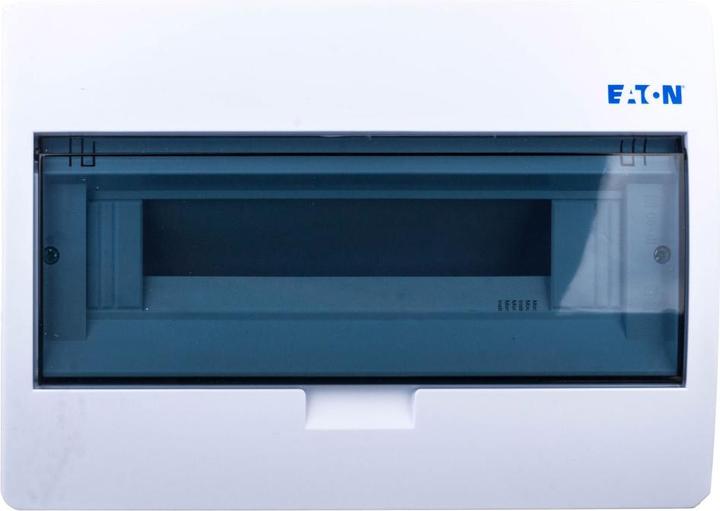

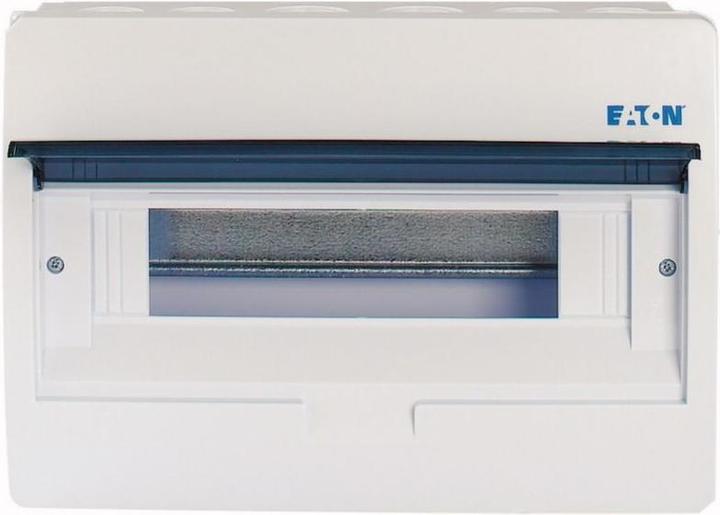

Eaton small distribution board BC-O-1/12-ECO

Manufacturer: Eaton
Designation: Small distribution board
Type: BC-O-1/12-ECO
Mounting type: Surface-mounted
Number of rows: 1
Width in subdivisions: 12
Type of cover: Door
Version cover: Closed
Transparent cover/door: Yes
Material of enclosure: Plastic
Height: 212 mm
Width: 303 mm
Depth: 98 mm
Installation depth: 70 mm
Installation height: 0 mm
Installation width: 0 mm
Internal depth: 90 mm
Earth terminal block: No
Neutral terminal block: No
DIN rail: Yes
With mounting plate: No
Mounting option: No
EMC version: No
Colour: White RAL 9003
Protection class (IP): IP40
With lock: No
Type of locking: Other
Signal passing door: No

Eaton BC-O-1/12-ECO small distribution board: further details
ECO small distribution board, surface-mounted, white RAL 9003, protection class IP40 to IEC/EN 62208, 12 partition units, 1-row, protection class 2 totally insulated, approved for the construction of distribution boards to IEC/EN 61439-3 VDE 0660-600-3, enclosure completely of ABS, for the installation of switchgear and protective devices to size standard DIN 43 880 with 70 mm installation depth, AC 400 V, RoHS-compliant. Consisting of plastic lower part with top-hat rail of galvanised sheet steel, finger-safe neutral and protective conductor terminal IP2X, pre-stamping for metric cable glands at top and bottom, upper part for metric cable glands at top and bottom. Top part with 46 mm opening, transparent flap flush with front with lock in open position, top part of enclosure with screw locks, top part can be sealed with bottom part, including labelling strips. EAN: 4015082803476.
