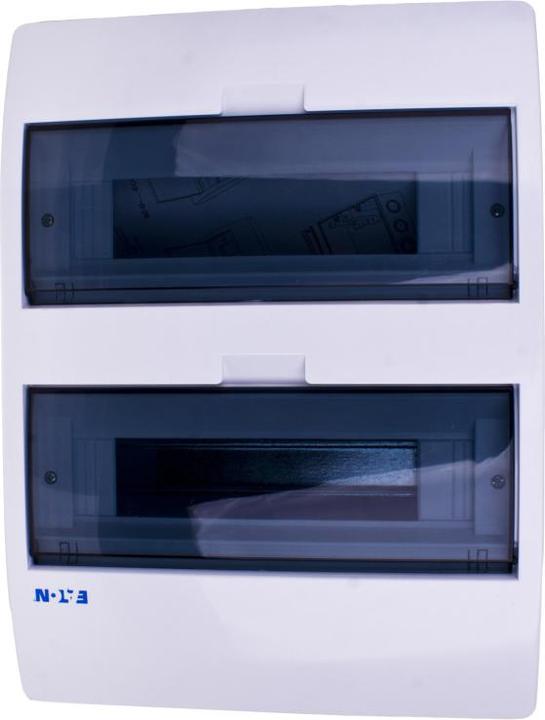

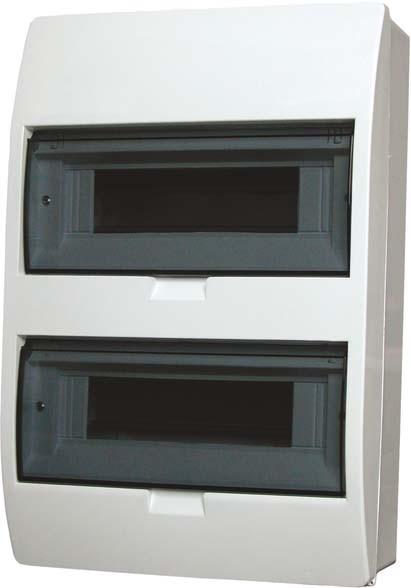

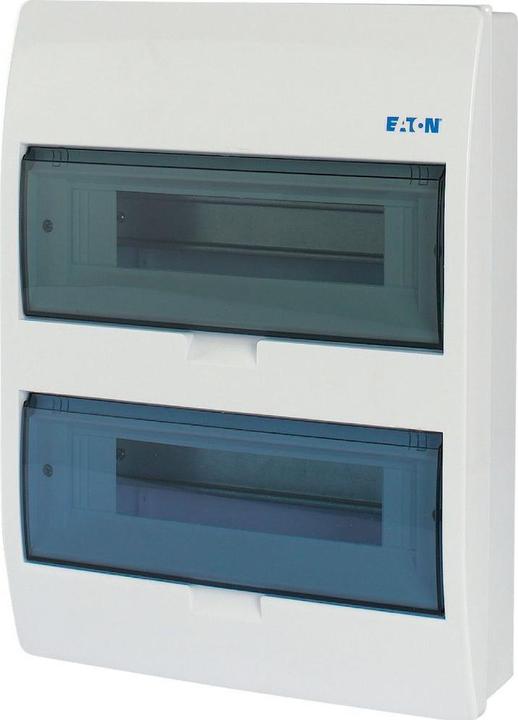

Eaton small distribution board BC-O-2/24-ECO

Manufacturer: Eaton
Designation: Small distribution board AP
Type: BC-O-2/24-ECO
Mounting type: Surface-mounted
Number of rows: 2
Width in subdivisions: 12
Cover type: Door
Cover type: Closed
Transparent cover/door: Yes
Enclosure material: Plastic
Height: 110 mm
Width: 310 mm
Depth: 415 mm
Installation depth: 70 mm
Installation height: 0 mm
Installation width: 0 mm
Internal depth: 90 mm
Earth terminal block: No
Neutral terminal block: No
DIN rail: Yes
With mounting plate: No
Mounting option: No
EMC version: No
Colour: White
RAL number: 9003
Protection class (IP): IP40
With lock: No
Type of locking: Other
Signal-permeable door: No

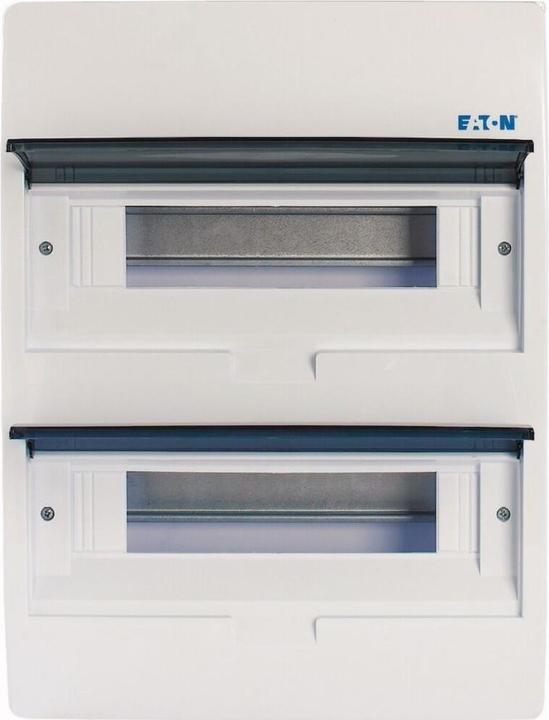

Eaton BC-O-2/24-ECO small distribution board: further details include an ECO small distribution board, surface-mounted, white RAL9003, protection class IP40 to IEC/EN 62208, 12 partition units, 2-row, protection class 2 totally insulated, approved for the construction of distribution boards to IEC/EN 61439-3 VDE 0660-600-3. The enclosure is completely made of ABS, designed for the installation of switchgear and protective devices to size standard DIN 43 880 with a 70 mm installation depth, AC 400 V, RoHS-compliant. It consists of a plastic lower part with a top-hat rail of galvanized sheet steel, finger-safe neutral and protective conductor terminal IP2X, pre-stamping for metric cable glands at the top and bottom, and an upper part for metric cable glands at the top and bottom. The top part features a 46 mm opening, a transparent flap flush with the front with a lock in the open position, and screw locks. The top part can be sealed with the bottom part and includes labeling strips.
