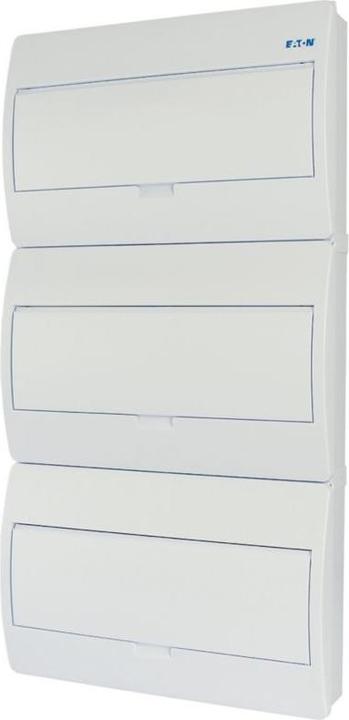

Eaton distribution board BC-O-3/54-TW-ECO Manufacturer :Eaton Designation :Distribution board surface-mounted with white door Type :BC-O-3/54-TW-ECO Mounting type :Surface-mounted Number of rows :3 Width in pitch units :18 Type of cover :Door Design cover :closed Transparent cover/door :no Material of enclosure :Plastic Height :110 mm Width :420 mm Depth :795 mm Installation depth :70 mm Installation height :0 mm Installation width :0 mm Internal depth :90 mm Earth terminal block :no Neutral terminal block :no DIN rail :yes With mounting plate :no Mounting option :no EMC version :no Colour :white RAL number :9003 Protection class (IP) :IP40 With lock :no Type of locking :other Signal passing door :no Eaton distribution board BC-O-3/54-TW-ECO: further details ECO small distribution board, surface-mounted, white RAL9003, protection class IP40 according to IEC/EN 62208, 18 partition units, 3-row, protection class 2 totally insulated, approved for the construction of distribution boards according to IEC/EN 61439-3 VDE 0660-600-3, enclosure completely made of ABS, for the installation of switchgear and protective devices to sizestandard DIN 43 880 with 70 mm installation depth, AC 400 V, RoHs-compliant, Consisting of plastic lower part with top-hat rail of galvanised sheet steel, finger-safe neutral and protective conductor terminal IP2X, pre-stamping for metric cable glands at top and bottom, upper part for metric cable glands at top and bottom.Top part with 46 mm opening, white flap flush with front with lock in open position, top part of enclosure with screw locks, top part can be sealed with bottom part, including labelling strips. , EAN: 4015082816957.
