Eaton HEATING ACTUATOR 16A, EMS (CHAU-01/01-16E)

Heating actuator
Price in EUR including VAT
Delivered between Tue, 5.8. and Tue, 12.8.
Only 2 pieces in stock at supplier
free shipping

Product details

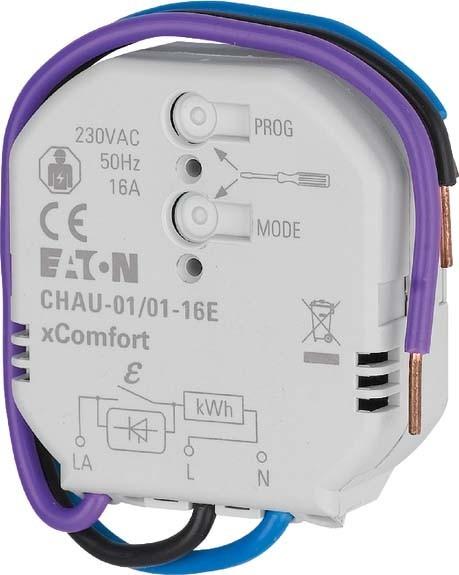

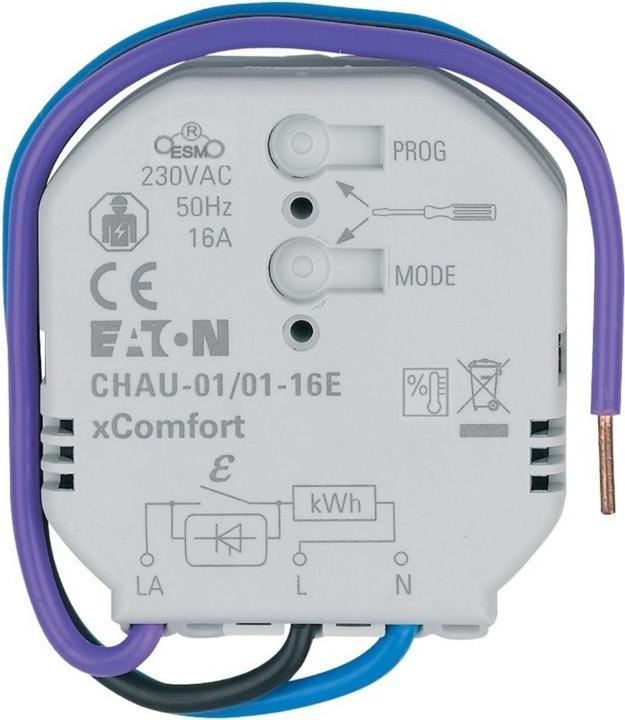

Eaton heating actuator CHAU-01/01-16E

Manufacturer: Eaton
Designation: Heating actuator 16A
Type: CHAU-01/01-16E
Bus system KNX: No
Bus system KNX radio: No
Bus system radio bus: Yes
Bus system LON: No
Bus system Powernet: No
Other bus systems: Other radio bidirectional: Yes
Mounting type: Flush-mounted
Width in subdivisions: 3
With bus coupling: Yes
Bus module removable: No
Actuating value continuous: Yes
Actuating value switching: No
Valve protection function: No
Manual switching: No
Max. switching current (ohmic load): 16 A
Number of outputs: 1
Max. output current: 16 A
Output current: 16 A
Switching voltage: 196..253 V
Protection class (IP): IP20
Min. depth of device box: 40 mm

Further details:
Heating actuator 16A suitable for all electric heating cables, foils, and heating plates. Compact design for installation behind wall sockets or in junction boxes. Works in combination with wireless temperature sensors or a smart device (Smart Home Controller). Simple selection of the heating type with heating profiles. Hybrid switching technology (long life) for high switching capacity. PWM based heating control. Integrated energy measurement. Supports wireless floor temperature sensor for overheating protection. Emergency operation mode in case of temperature sensor failure. Energy efficient.

Key specifications

Actuator type
Heating actuator
mounting style
Flush-mounted
Items per sales unit
1 x
Item number
25192457

General information

Manufacturer
Eaton
Category
Actuator
Manufacturer no.
194373
Release date
24.10.2022

Actuator properties

Actuator type
Heating actuator
Max. Switching capacity
16 W
rated current
16 A
Operating voltage
196 V
Number of switching outputs
1 x
mounting style
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
Radio frequency
868300000 Hz
Requires Smart Home Hub
No

Origin

Country of origin
Czech Republic

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
18 mm
Width
45.50 mm
Height
49.50 mm
