Actuator type: Plunger
Contact configuration: 2 NC contacts
Protection class: IP66, IP67
Current max: 200 mA
Housing material: Plastic
DC voltage max: 30V
Connection type: Spring-cage terminal
Series: LS-Titan
Contact type: Standard switching operation
Connection type: Screw fixing
Length: 76mm
Width: 33.5mm
Operating temperature max: +70°C

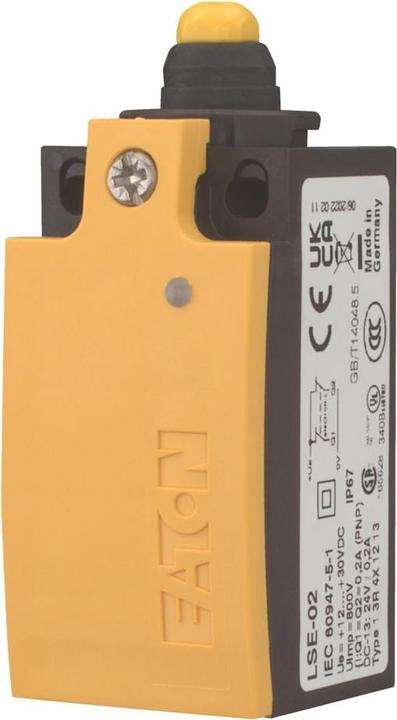

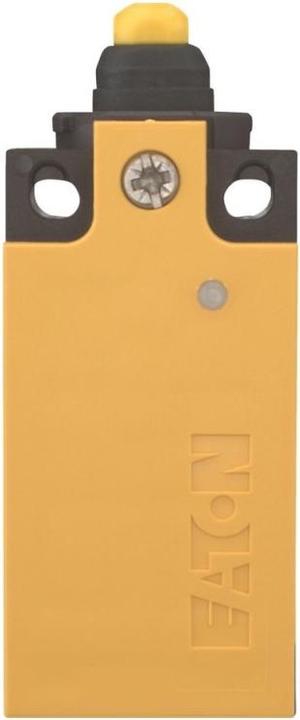

LS Titan plastic housing. Modular system conforms to EN 50047 degree of protection IP66 with plastic enclosure. Standard or snap-action contacts, early break (EB) or late break (LB) versions. Locked opposing contacts for positive actuation. Cage clamps are maintenance-free and vibration-resistant. Actuating heads can be mounted in eight positions. Suitable for electronic devices. LSE versions include electronically adjustable actuating point and visible status display.
