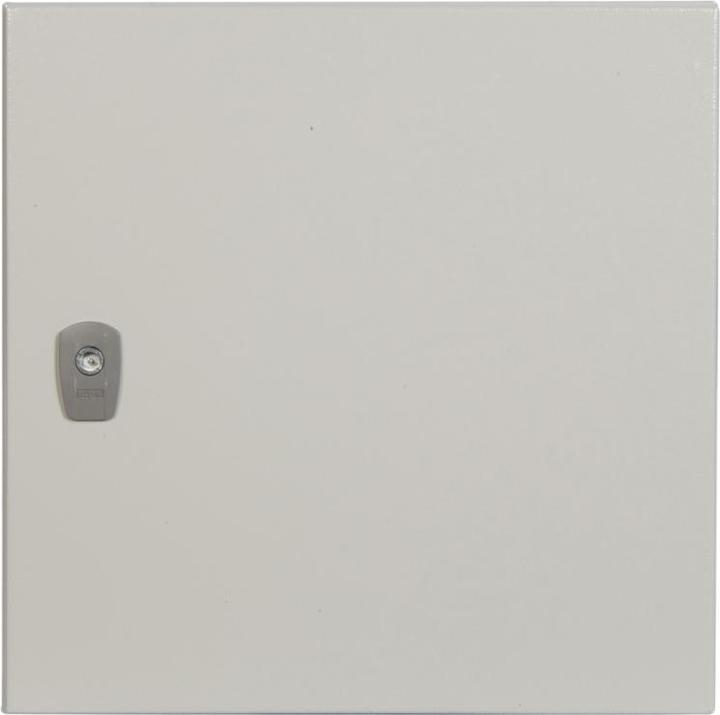

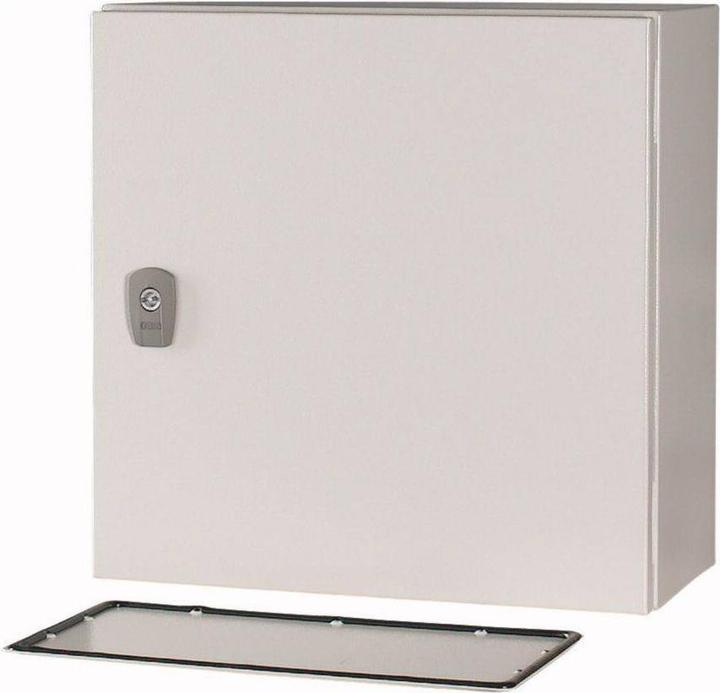

Eaton sheet steel wall-mounted enclosure CS-44/200

Manufacturer: Eaton
Designation: Sheet steel wall-mounted enclosure
Dimensions: 400 x 400 x 200 mm
Type: CS-44/200
Width: 400 mm
Height: 400 mm
Depth: 200 mm
Material: Steel
Material grade: Other
Finish: Powder-coated
Colour: Grey (RAL 7035)
Free-standing: No
Floor-standing wall model: Yes
Suitable for wall mounting: Yes
Corner model: No
Intermediate mounting: Yes
Can be coupled: No
With mounting plate: Yes
Mounting plate depth-adjustable: No
Pole mounting: Yes
Number of doors: 1
Number of locks: 1
Suitable for metric mounting: Yes
Suitable for outdoor installation: No
Pitched roof: No
EMC version: No
With viewing door: No
With ventilation door: No
With rear door: No
Impact resistance: IK09
Protection class (IP): IP66
Protection class (NEMA): 12
Heat loss capacity (Delta T 20 K) according to IEC/TR 60890: 29 W
Max. permissible load of enclosure/cabinet: Yes
Max. permissible load on enclosure/cabinet to IEC 62208: 2250 N
Max. permissible load on door(s) to IEC 62208: 250 N
Max. permissible load on mounting plate to IEC/TR 60890: 29 W
Permissible load of the mounting plate to IEC 62208: 2000 N

Further details:

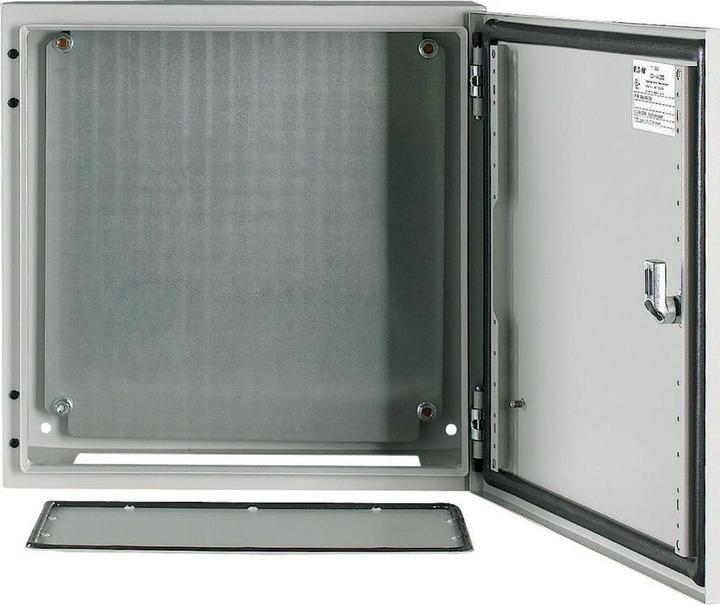

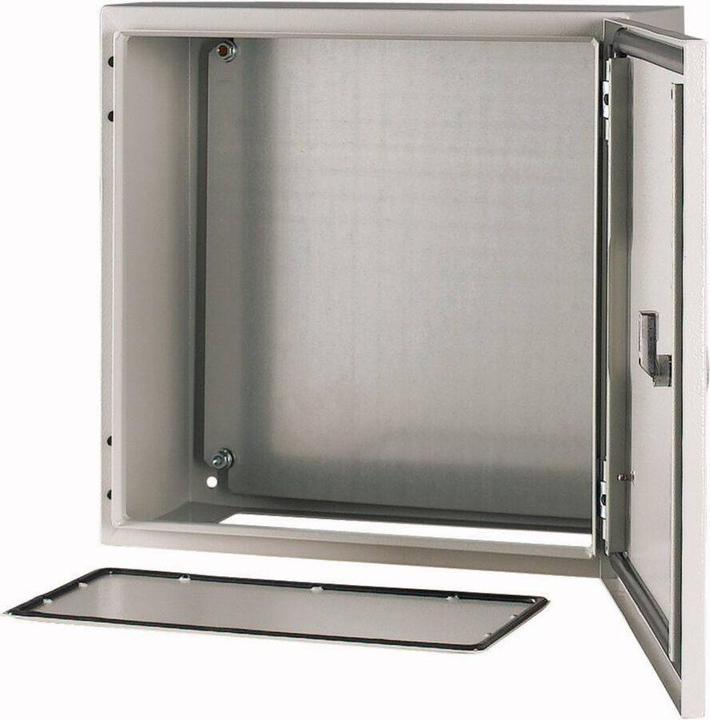

Wall-mounted enclosure CS, door with continuous foamed-in polyurethane seal, impact resistance category IK09 to EN 62262, base plate with foamed-in seal, single door, door hinge right, door opening angle 120°, door hinge pins with Quick-Change technology, door profile strip with perforations at 25 mm intervals for fastening DIN mounting rails or for fixing cable conduits and cables, standardized locking system with sash fastener made completely of metal, with sheet steel mounting plate.

Scope of delivery: Lock, 3mm double bit, optional additional equipment such as rotary comfort handle PHZ-A-ADD-ON with cylinder lock PHZ-E10/30-GS. Developed according to EN 62208. EAN: 4015081112432.
