Name: SR Basis-1 door coordinator for sash widths up to 1600 mm, galvanised steel
Brand: ECO
SKU: 42721577
Price: 68.07 EUR
Availability: InStock

productDetailPageQuery

The closing sequence controller determines the closing order of the two door leaves. The door leaf that is to close last makes contact with the pin of its support angle on the spring-mounted telescopic arm of the closing sequence controller and remains in this position until the stand leaf, when closing, reaches the telescopic arm of the closing sequence controller with its follower pin and folds the telescopic arm flat against the door frame. This releases the door leaf, allowing it to close completely. Tested according to DIN EN 1158.

Technical data:
- Leaf weight: max. 200 kg per leaf
- Leaf width: up to 1600 mm per leaf
- Space requirement above the door: at least 30 mm
- Includes 2 support angles

Note: When used on fire doors, the use of a follower flap is mandatory!

Material: Galvanized steel
Mounting type: Surface-mounted
Type: SR Basis-1
Brand: Eco
Contents (ST): 1.

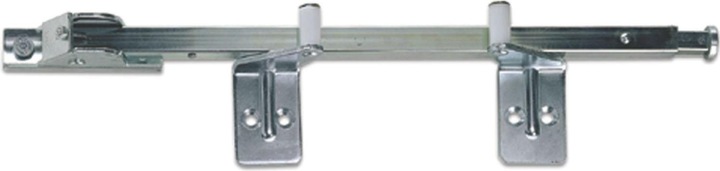

Actual product image ECO SR Basis-1 door coordinator for sash widths up to 1600 mm, galvanised steel
