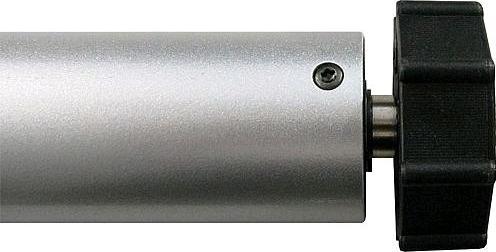

Mechanical tubular motor IM

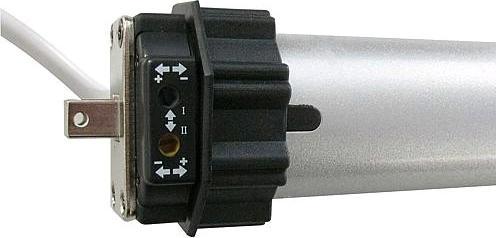

Completely ready for installation, including drive bearing for installation in octagonal shaft. Features a precision tube that is corrosion-free, allowing for simple and quick installation. It includes mechanical end point adjustment by spindle screws on the motor, is maintenance-free, and has a powerful gear with a thermal safety cut-out. The maximum running time is 4 minutes, and it comes with a 2.5m connection cable, rated IP44.

Installation is suitable for an 8-sided shaft SW 60mm, 230V.

Technical data

EAN: 4027236027270

Product group: Building Services/Roller Shutter Ant.

Manufacturer: EGB

Supplier article number: IM 45-30/17

Length: 602mm

Speed: 17 rpm

Torque/load: 30Nm/60kg.
