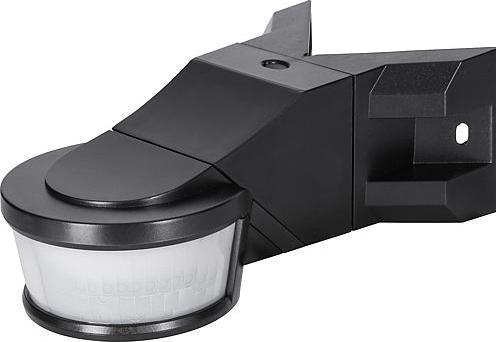

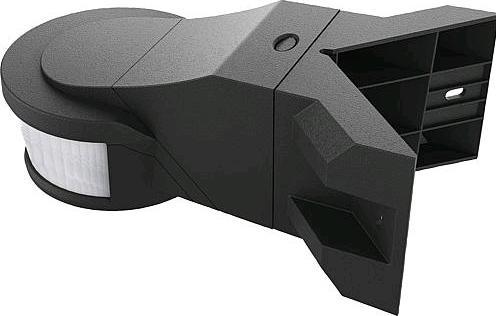

EGB Motion Detector 270 PRO

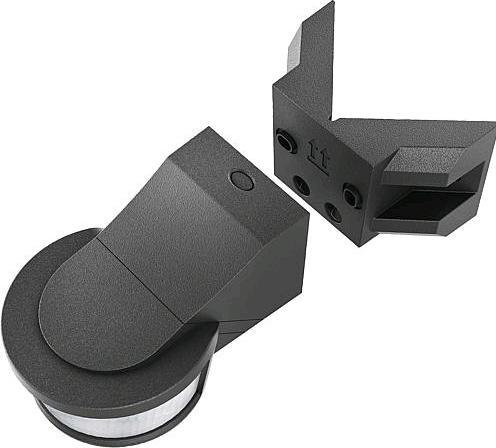

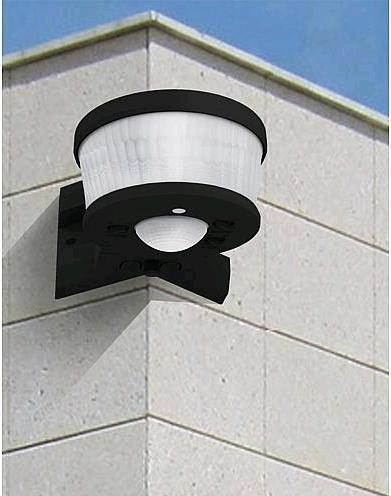

Polycarbonate housing with creep protection 360°, suitable for wall, ceiling, and outside corner mounting. The sensor head can be tilted 90° to the side, and it features a separate mounting base with connection terminals Lin/Lout, N/N, and an enclosed corner mounting base. The detection range with ceiling mounting or creep protection 360° downwards has a maximum detection radius of 5m (Ø10m). The detection area with wall mounting is 180°, and with outside corner or ceiling mounting, it is 270° to the front, with a maximum range of 15m. The twilight value is adjustable from 2 to 2000 Lux, and the time setting ranges from 10 seconds to 4 minutes. The switching capacity for incandescent and HV halogen lamps (230V/AC) is 2000W, while the maximum for LED is 300W. The temperature range is -20°C to +45°C. Dimensions are wall/corner L140/L205xW95xH90mm and ceiling L135xW95xH95mm. IP44 rated.

Technical data

EAN: 4027236047377

Product group: Insulating switchgear/motion detectors

Manufacturer: EGB

Supplier article number: 190101EGB

Colour: black.
