EGB Motion Detector 270 PRO

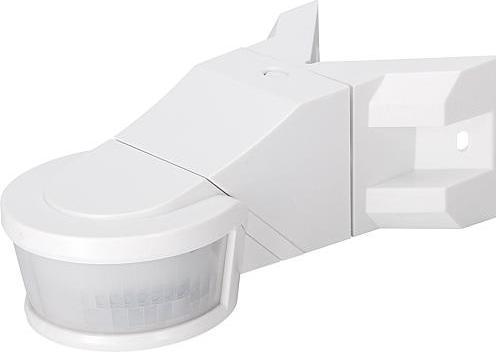

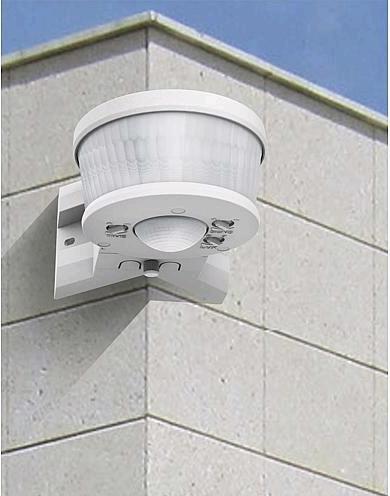

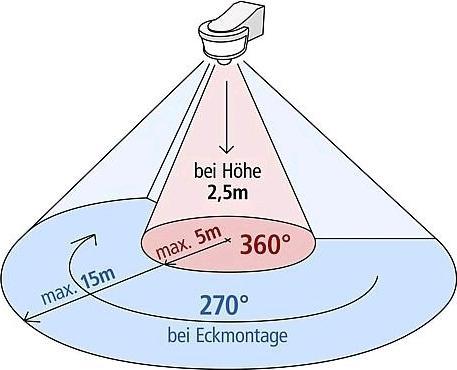

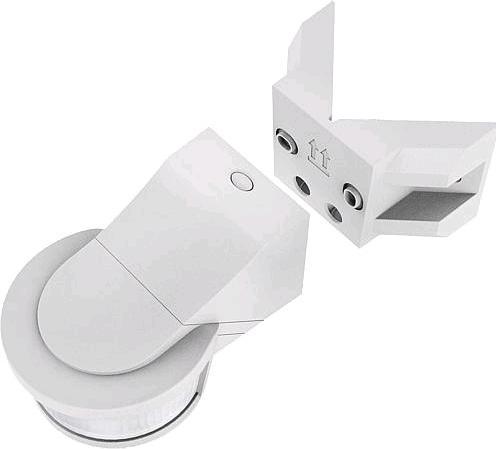

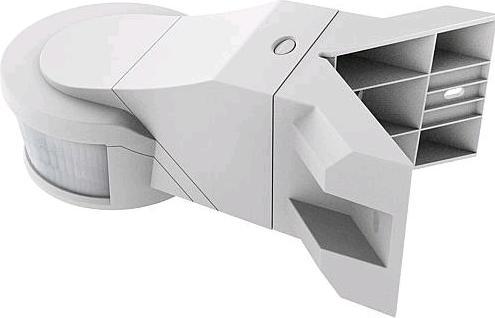

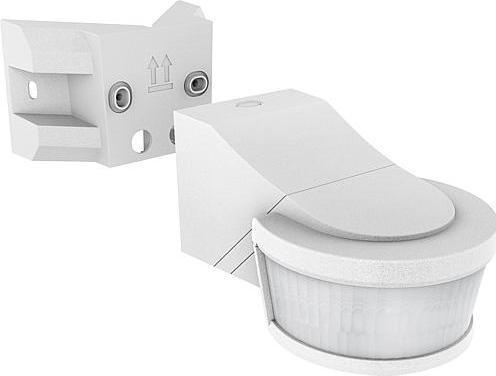

This motion detector features a polycarbonate housing with 360° creep protection, suitable for wall, ceiling, and outside corner mounting. The sensor head can be tilted 90° to the side, and it comes with a separate mounting base that includes connection terminals Lin/Lout and N/N, as well as an enclosed corner mounting base. The detection range for ceiling mounting or 360° creep protection downwards is a maximum of 5m (Ø10m). When wall mounted, the detection area is 180°, and for outside corner or ceiling mounting, it provides 270° coverage to the front, with a maximum range of 15m. The twilight value is adjustable between 2-2000 Lux, and the time setting can be configured from 10 seconds to 4 minutes. It has a switching capacity for incandescent and HV halogen lamps (230V/AC) of 2000W, and for LED lights, the maximum is 300W. The temperature range is from -20°C to +45°C. The dimensions for wall/corner mounting are L140/L205xW95xH90mm, and for ceiling mounting, L135xW95xH95mm. The device has an IP44 rating.

Technical data

EAN: 4027236047360

Product group: Insulating switchgear/movement

Manufacturer: EGB

Supplier article number: 190100EGB

Colour: White.
