ELSO USB charging station
Product details

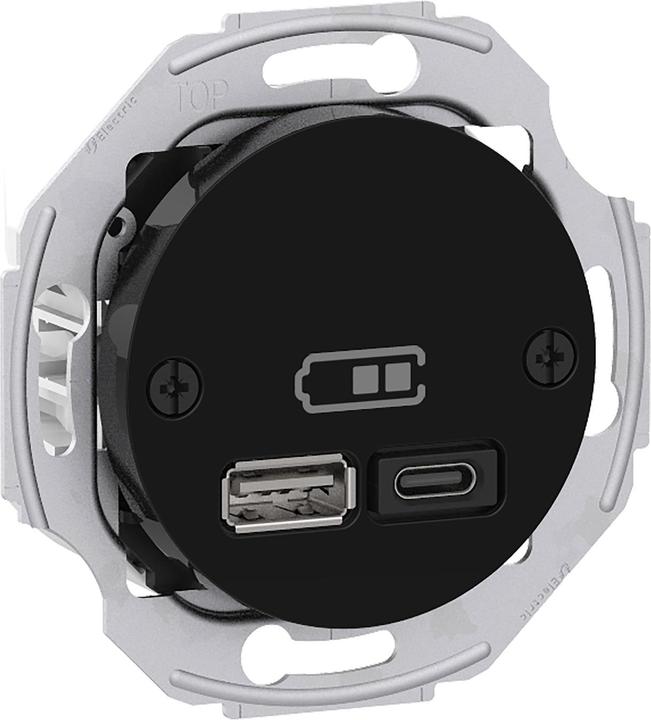

The Renova USB charger is a device with a mounting frame and claws that enables the charging of mobile/tablet and notebook devices. The input voltage is 240 V. The power consumption is below 0.1 W, and the nominal output power is 45 W with PD technology. The output voltage and corresponding current are automatically adjusted by the PD protocol: 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/2.25 A for USB C and 5 V/1.5 A, 7.5 W for USB A. The nominal operating voltage ranges from 100 volts to 240 volts, while the output voltage varies between 5 and 20 volts. This USB charger features electronic overload and temperature protection, enhancing safety levels. It is mounted using screws, and the installation box can be flush-mounted into the surface. The dimensions are 51 mm in width, 40.7 mm in height, and 30 mm in depth, with a mounting depth of 30.8 mm. This USB charger is very robust and has a lifespan of 30,000 hours. It achieves protection class IK04, which protects against impacts of 0.5 joules, as well as protection class IP20 against solid objects and liquids. Furthermore, it complies with directives 2002/95/EC (RoHS), 2002/96/EC (WEEE), 2004/108/EC (electromagnetic compatibility), and 2006/95/EC (low voltage directive). As this device is environmentally friendly, it also meets Regulation (EC) No. 1907/2006. The USB charger is made of PC (polycarbonate) GF10 FR, making it particularly durable. It has also received the EAC certificate and complies with standards EN 60950-1, EN 62684, and ETSI EN 301 489-4. The USB charging station is supplied with a central plate.
Exact colour description | Black |
Connection type | Coupling female |
Nominal voltage | 240 V |
Nominal current | 3 A |
Number of cores | 2x |
Protection type (IP code) | IP20 |
Item number | 38613926 |
Manufacturer | ELSO |
Category | Power plugs + connectors |
Manufacturer No. | WDE011765 |
Release date | 13.9.2023 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Material | PC (polycarbonate) GF10 FR |
Connection type | Coupling female |
Nominal voltage | 240 V |
Nominal current | 3 A |
Number of cores | 2x |
Protection type (IP code) | IP20 |
Country of origin | China |
Length | 30 mm |
Width | 51 mm |
Height | 40.70 mm |
