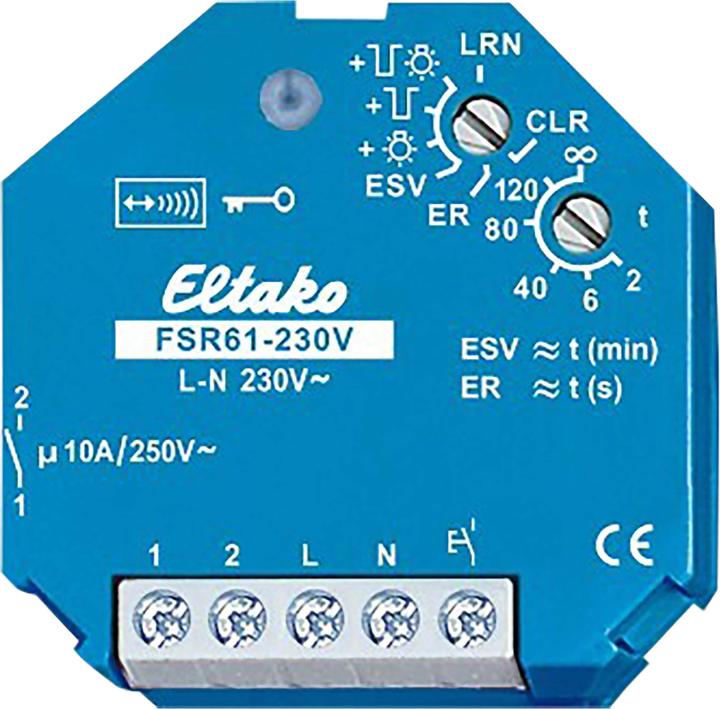

Eltako Wireless actuator FSR61-230V

Switch actuator
Price in EUR including VAT, free shipping
Delivered between Mon, 26.5. and Wed, 28.5.
Only 1 item in stock at third-party supplier
Supplied by

Product details

Eltako 1 potential-free switch 10A/250V AC, suitable for incandescent lamps up to 2000 watts, with a delay on release and a pre-warning for switching off, as well as a permanent light function that can be activated. Encrypted radio, bidirectional radio, and repeater function can be enabled. Standby loss is only 0.8 watts. Designed for installation. Dimensions: 45 mm long, 45 mm wide, 33 mm deep. The switching state is maintained in the event of a power supply failure. Upon restoration of the power supply, it will be defined as switched off. After installation, wait for the automatic short synchronization before connecting the switched load to the network. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a conventional control button that may be installed beforehand. A glow lamp current is not permitted. Encrypted sensors can be learned in. Bidirectional radio and/or a repeater function can be activated. Any state change and received central control telegrams will then be confirmed with a radio telegram. This radio telegram can be learned into other actuators, the GFVS software, and universal displays. Scene control: With one of the four control signals from a button learned as a scene button with a double rocker, multiple FSR61 units can be switched on or off as part of a scene. The upper rotary switch in the LRN position allows for learning up to 35 radio buttons.

Key specifications

Actuator type
Switch actuator
mounting style
Flush-mounted
Items per sales unit
1 x
Item number
17823372

General information

Manufacturer
Eltako
Category
Actuator
Manufacturer no.
30100005
Release date
6.11.2021
External links

Colour

Colour
Blue
Exact colour description
Blue

Material

Material group
Plastic
Material
Plastic

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
2000 W
rated current
10 A
Operating voltage
230 V
Number of switching outputs
1 x
mounting style
Flush-mounted
Protection type (IP code)
IP20

Smart home features

Smart Home
Compatible
Radio frequency
868000000 Hz
Requires Smart Home Hub
No

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 x

Product dimensions

Length
0.03 m
Width
0.05 m
Height
0.05 m
Weight
60 g

Package dimensions

Length
10 cm
Width
7 cm
Height
4 cm
Weight
70 g
