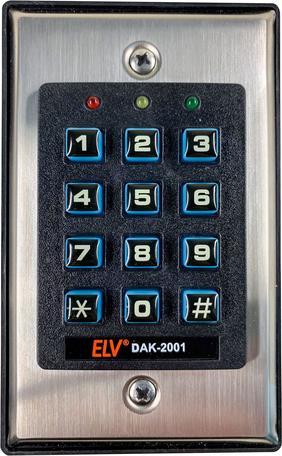

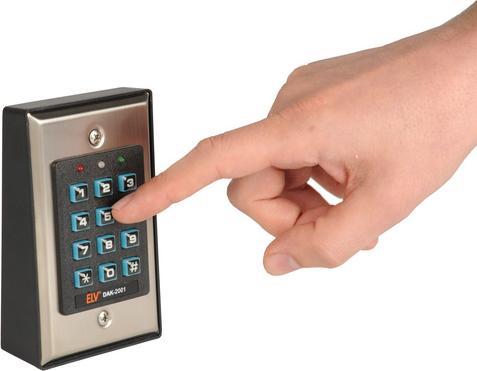

The DAK-2001 series is designed for controlled access at entrances, in security areas, automated manufacturing facilities, and machines. They are suitable for direct integration into 12 VDC systems and feature a programmable relay output, status indicators, and more. The primary application of this code lock is the initialization of electric door openers via code.

Features of DAK 2001:

• Up to 100 users can be registered
• Single/multi-user mode
• N.O. switching output 3 A/12 V DC, in toggle or time-controlled operation (1–999 s)
• Operates at 12 V DC
• Input for manual door opener
• Status indicators via 3 LEDs and audible signal (audible signal can be disabled)
• Automatic activation of the output immediately after code entry or manually after an additional opening command
• Short code with 2 digits (quick access)
• Access lock (night mode, master access only) programmable
• Data retention in case of power failure

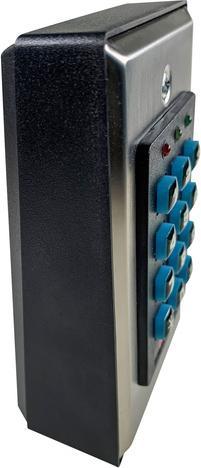

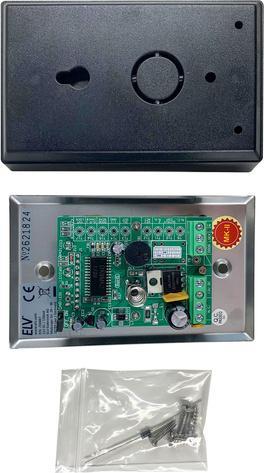

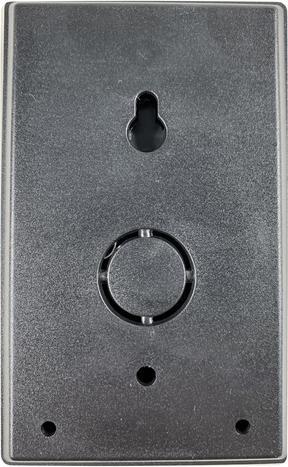

• Robust plastic housing with stainless steel cover
• Potential-free sabotage contact
• Protection class according to IP20
• Dimensions (W x H x D): 72 x 117 x 42 mm

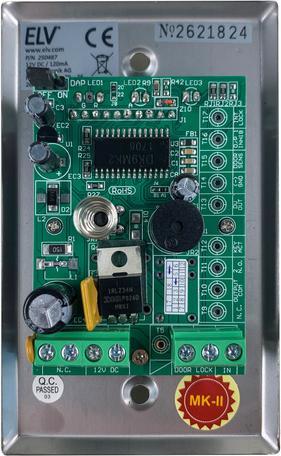

Note: Output 1 (Connections 6 + 7) is not a "potential-free" switching contact, but a switching contact.
