The DAK-2201 series is suitable for controlled access at entrances, in security areas, automated manufacturing plants, and machines. It can be directly integrated into 12 VDC systems and features three different switching outputs as well as status indicators. In its basic functions, it corresponds to the code lock DAK 2001, but offers additional features such as monitoring the status of the controlled door.

Additional features of the DAK 2201 include: door monitoring function (door closing function, alarm when opened without code lock, locking function of the second door with switching delay), three freely programmable switching outputs:

• Output 1: Switching output 12 V DC/3 A
• Output 2: N.O or N.C contact (potential-free), 24 V DC/1 A
• Output 3: NPN open-collector output 100 mA/24 V (report contact, also programmable as a silent alarm contact).

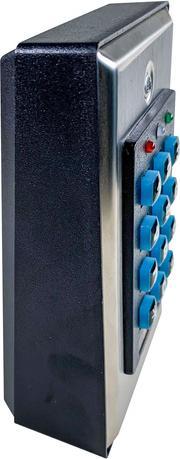

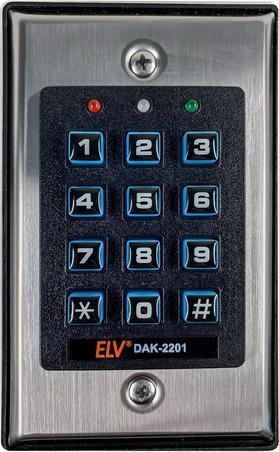

Three indicator LEDs are freely assignable, and there is a tamper contact. The robust plastic housing with stainless steel cover has an IP20 protection rating. Dimensions (W x H x D): 74 x 118 x 48 mm.
