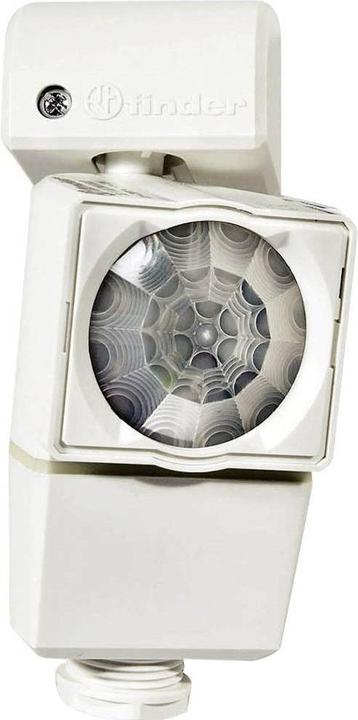

Motion Detector
Number of contacts: 1
Contact type: NO
Contact material: AgSnO2
Rated voltage: 230 V
Mounting type: Surface-mounted
Color: white
Design: Motion detector
Halogen-free: yes
Connection type: Screw terminal
Voltage type: AC
Frequency: from 50 to 60 Hz
With remote control: no
Stairwell monitoring: no
Suitable for wireless transmission: no
Material quality: Thermoplastic
Max. switching power: 1000 W
Temperature: from -30 to 50 °C
Max. inrush current: 20 A
Material: Plastic
Adjustable sensitivity: yes
Dimming function with dimming insert: no
Response brightness: from 5 to 350 lx
Suitable for C-load: yes
Detection field diameter on the floor: 8 m
Remote controllable: no
HVAC control: no
Constant light control: no
Secondary input: no
RAL number (similar): 9010
With signal unit: yes
Control current: 10 mA
Networkable: no
Forced disconnection: no
Alarm function: no
Transparent: yes
Animal passage: yes
Surface finish: matte
Min. switch-on duration: 10 s
Max. switch-on duration: 12 min
Suitable for wall mounting: yes
Adjustable response brightness: yes
With DALI interface: no
Forced activation: no
Sensor type: passive infrared
Suitable for ceiling mounting: yes
Antibacterial treatment: no
Protection class (IP): IP54
Additional data: Adjustable time until disconnection: 10 s to 12 min.
